NRS6045T100MMGK footprint, schematic symbol and 3D model by TAIYO YUDEN

Symbol

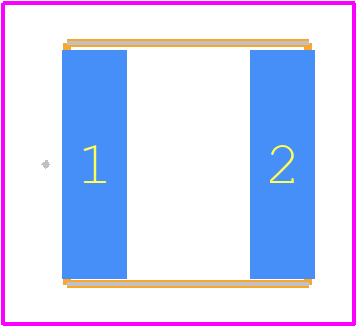

PCB Footprints

3D Models

NRS6045T100MMGK Details

The recommended land pattern for the NRS6045T100MMGK is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm.
The NRS6045T100MMGK has a thermal resistance of 10°C/W. To handle thermal considerations, ensure good thermal conduction by using a thermal pad or thermal interface material, and provide adequate airflow around the component.
The maximum operating temperature range for the NRS6045T100MMGK is -40°C to 125°C.
To ensure reliability in high-vibration environments, use a secure mounting method, such as soldering or adhesive bonding, and consider using a vibration-dampening material or potting compound to reduce stress on the component.
The recommended storage condition for the NRS6045T100MMGK is in a dry, cool place, away from direct sunlight, with a temperature range of 5°C to 30°C and humidity below 60%.

Expert Contribution

System Verified

Community Approved

Use the download button to access the NRS6045T100MMGK schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NRS60, or try a keyword search, such as Fixed Inductors
