NRS6045T150MMGK - TAIYO YUDEN

Description: 15µH Shielded Wirewound Inductor 1.9A 91mOhm Max Nonstandard

Download NRS6045T150MMGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NRS6045T150MMGK - TAIYO YUDEN - PCB symbol
click to zoom
PCB Footprints

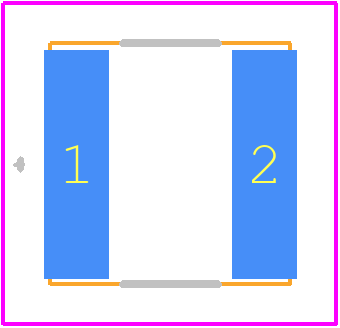

NRS6045T150MMGK - TAIYO YUDEN PCB footprint - Other - Other - NRS6045T150MMGK-2
click to zoom
3D Models
NRS6045T150MMGK - TAIYO YUDEN - 3D model - Other - NRS6045T150MMGK-2
click to zoom

NRS6045T150MMGK Details

  • Manufacturer Part Number:

    NRS6045T150MMGK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TAIYO YUDEN

  • YTEOL:

    7

  • Case/Size Code:

    2424

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.091 Ω

  • Inductance-Nom (L):

    15 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Height:

    4.5 mm

  • Package Length:

    6 mm

  • Package Style:

    SMT

  • Package Width:

    6 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    1.9 A

  • Self Resonance Frequency:

    10 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Special Feature:

    DC RESISTANCE IS MEASURED AT: 30%

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN OVER NICKEL

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    ONE SURFACE

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

NRS6045T150MMGK Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NRS6045T150MMGK is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm.
  • The NRS6045T150MMGK has a thermal resistance of 10°C/W. To handle thermal considerations, ensure good thermal conduction by using a thermal pad or thermal interface material, and provide adequate airflow around the component.
  • The maximum operating temperature range for the NRS6045T150MMGK is -40°C to 125°C.
  • To ensure reliability in high-vibration environments, use a secure mounting method, such as soldering or adhesive bonding, and consider using a vibration-dampening material or potting compound to reduce mechanical stress.
  • The recommended storage condition for the NRS6045T150MMGK is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%.
