NRVB1240MFST1G - onsemi

Description: Low Power Loss / High Efficiency; New Package Provides Capability of Inspection and Probe After Board Mounting; Guardring for Stress Protection; Low Forward Voltage Drop; 150°C Operating Junction Temperature; Wettable Flacks Option Available; NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable; These are Pb−Free Devices

Download NRVB1240MFST1G Model
Schematic

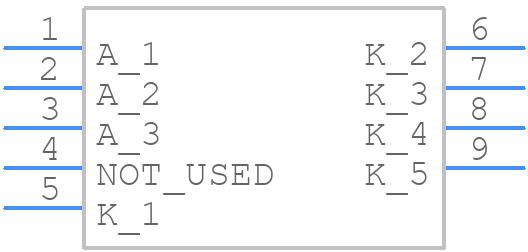

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NRVB1240MFST1G - onsemi PCB footprint - Other - Other - DFN5 5x6, 1.27P (SO−8FL) CASE 488AA ISSUE N_1
click to zoom
3D Models
NRVB1240MFST1G - onsemi  - 3D model - Other - DFN5 5x6, 1.27P (SO−8FL) CASE 488AA ISSUE N_1
click to zoom

NRVB1240MFST1G Details

  • Manufacturer Part Number:

    NRVB1240MFST1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN5 5X6, 1.27P (SO 8FL)

  • Manufacturer Package Code:

    488AA

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.32

  • Additional Feature:

    LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.68 V

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    150 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    12 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    40 V

  • Reverse Current-Max:

    500 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NRVB1240MFST1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the VIN pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the NRVB1240MFST1G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required.
  • Follow proper ESD handling procedures during assembly and storage. The device has built-in ESD protection, but additional external protection may be necessary depending on the application.
