NRVTS10100EMFST1G - onsemi

Description: Fine Lithography Trenchbased Schottky Technology for Very Low Forward Voltage and Low Leakage; Fast Switching with Exceptional Temperature Stability; Low Power Loss and Lower Operating Temperature; Higher Efficiency for Achieving Regulatory Compliance; Low Thermal Resistance; High Surge Capability; These are PbFree and HalideFree Devices

Download NRVTS10100EMFST1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

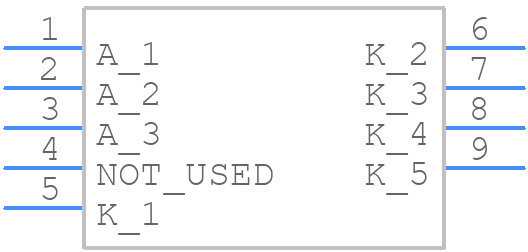

NRVTS10100EMFST1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NRVTS10100EMFST1G - onsemi PCB footprint - Other - Other - DFN5 5x6, 1.27P (SO−8FL) CASE 488AA ISSUE N_1
click to zoom
3D Models
NRVTS10100EMFST1G - onsemi - 3D model - Other - DFN5 5x6, 1.27P (SO−8FL) CASE 488AA ISSUE N_1
click to zoom

NRVTS10100EMFST1G Details

  • Manufacturer Part Number:

    NRVTS10100EMFST1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SO-8FL / DFN-5

  • Package Description:

    SO-8FL, DFN5, 6 PIN

  • Manufacturer Package Code:

    488AA

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Breakdown Voltage-Min:

    100 V

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.72 V

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    200 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Reverse Current-Max:

    50 µA

  • Reverse Test Voltage:

    100 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NRVTS10100EMFST1G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal relief pattern is recommended. Refer to the onsemi application note AND9393/D for more details.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator or a low-dropout regulator (LDO) is recommended to regulate the input voltage. A decoupling capacitor of 10uF or higher is recommended to filter out noise and ensure stable operation.
  • The NRVTS10100EMFST1G is rated for operation from -40°C to 150°C. However, the device may be operated at temperatures above 150°C for short periods of time, but this may affect the device's reliability and lifespan.
  • The device is sensitive to ESD. Handling the device by the body or using an ESD wrist strap is recommended. A minimum of 1kΩ resistance in series with the input and output pins is recommended to protect the device from ESD.
  • The device should be stored in a dry, cool place away from direct sunlight. The storage temperature should be between -40°C to 30°C, and the humidity should be below 60%. The device should be stored in its original packaging or in a shielded bag to prevent ESD damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NRVTS10100EMFST1G Overview

Use the download button to access the NRVTS10100EMFST1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRVTS, or try a keyword search, such as Rectifier Diodes
