NRVTS10100MFST1G - onsemi

Description: Fine Lithography Trenchbased Schottky Technology for Very Low Forward Voltage and Low Leakage; Fast Switching with Exceptional Temperature Stability; Low Power Loss and Lower Operating Temperature; Higher Efficiency for Achieving Regulatory Compliance; Low Thermal Resistance; High Surge Capability; These are PbFree and HalideFree Devices

Download NRVTS10100MFST1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

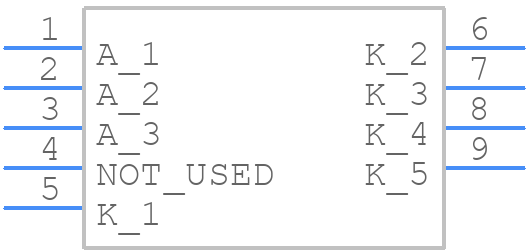

NRVTS10100MFST1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NRVTS10100MFST1G - onsemi PCB footprint - Other - Other - NRVTS10100MFST1G-2
click to zoom
3D Models
NRVTS10100MFST1G - onsemi - 3D model - Other - NRVTS10100MFST1G-2
click to zoom

NRVTS10100MFST1G Details

  • Manufacturer Part Number:

    NRVTS10100MFST1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN5 5X6, 1.27P (SO 8FL)

  • Package Description:

    SO-8FL, DFN5, 6 PIN

  • Manufacturer Package Code:

    488AA

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    74 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Breakdown Voltage-Min:

    100 V

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.69 V

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    200 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Reverse Current-Max:

    70 µA

  • Reverse Test Voltage:

    100 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NRVTS10100MFST1G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to an inner layer or the backside of the PCB for better heat dissipation.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator or a voltage reference can be used to provide a stable input voltage. The biasing circuit should be designed to provide a stable voltage and current to the device.
  • The NRVTS10100MFST1G is designed to operate at frequencies up to 100 MHz. However, the optimal operating frequency range depends on the specific application and the desired performance. It is recommended to consult the datasheet and application notes for more information.
  • The NRVTS10100MFST1G has built-in ESD protection, but it is still recommended to take precautions during handling and assembly to prevent ESD damage. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.
  • The NRVTS10100MFST1G has a maximum junction temperature of 150°C. The device should be operated within the recommended temperature range to ensure optimal performance and reliability. Exceeding the maximum junction temperature can lead to device failure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NRVTS10100MFST1G Overview

Use the download button to access the NRVTS10100MFST1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRVTS, or try a keyword search, such as Rectifier Diodes
