NRVTS1045EMFST1G - onsemi

Description: Fast Switching with Exceptional Temperature Stability; Fine Lithography Trenchbased Schottky Technology for Very Low Forward Voltage and Low Leakage; Low Power Loss and Lower Operating Temperature; Higher Efficiency for Achieving Regulatory Compliance; Low Thermal Resistance; High Surge Capability; These are PbFree and HalideFree Devices

Download NRVTS1045EMFST1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

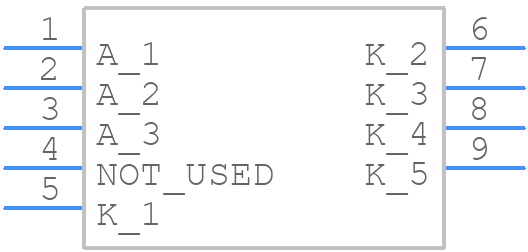

NRVTS1045EMFST1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NRVTS1045EMFST1G - onsemi PCB footprint - Other - Other - NRVTS1045EMFST1G-2
click to zoom
3D Models
NRVTS1045EMFST1G - onsemi - 3D model - Other - NRVTS1045EMFST1G-2
click to zoom

NRVTS1045EMFST1G Details

  • Manufacturer Part Number:

    NRVTS1045EMFST1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN5 5X6, 1.27P (SO 8FL)

  • Manufacturer Package Code:

    488AA

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    76 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Breakdown Voltage-Min:

    45 V

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.6 V

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    210 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    45 V

  • Reverse Current-Max:

    50 µA

  • Reverse Test Voltage:

    45 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NRVTS1045EMFST1G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2 oz copper thickness is recommended for the thermal pad, and it should be connected to a solid ground plane to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, ensure that the device is not exposed to thermal shocks or rapid temperature changes.
  • The NRVTS1045EMFST1G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • Yes, the NRVTS1045EMFST1G is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101 and is PPAP capable. However, additional testing and validation may be required for specific applications.
  • Use a logic analyzer or oscilloscope to monitor the device's input and output signals. Check the device's power supply and ensure that it's within the recommended operating range. Consult the datasheet and application notes for troubleshooting guidelines.
