A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. Additionally, it's recommended to have a minimum of 2oz copper thickness and to use a thermal relief pattern around the device to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions and derating guidelines provided in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature, and ensure good airflow around the device.
The NRVTS8120EMFST3G has built-in ESD protection, but it's still essential to follow standard ESD handling precautions during assembly and testing, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
Yes, the NRVTS8120EMFST3G is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q101 qualification and to follow the recommended design and testing guidelines for these applications.
The recommended soldering conditions for the NRVTS8120EMFST3G are a peak temperature of 260°C, with a soldering time of 10-30 seconds. For rework, it's recommended to use a low-temperature soldering iron and to avoid applying excessive heat or force to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NRVTS8120EMFST3G Overview

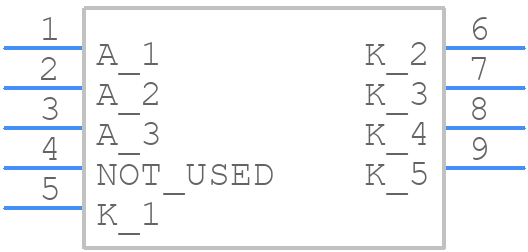

Use the download button to access the NRVTS8120EMFST3G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRVTS,
or try a keyword search, such as Rectifier Diodes
