NSC9260 - NOVOSENSE

Description: AEC-Q100 compliant capacitive pressure sensor signal conditioning IC with -24 V to 28 V over/reverse voltage protection, integrated C/V converter, dual 24-bit ADCs, digital processor for up to 3rd-order nonlinear and 2nd-order temperature calibration, EEPROM for coefficient storage, analog/PWM output, and -40 °C to 150 °C operating range—ideal for automotive applications above 1 MPa like A/C and brake pressure sensing.

Download NSC9260 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

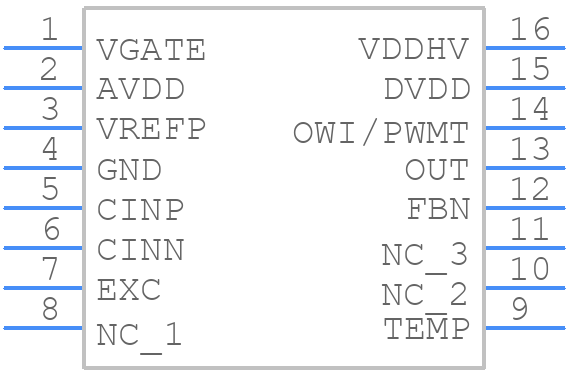

NSC9260 - NOVOSENSE - PCB symbol
