NSD10-12S3 - Mean Well

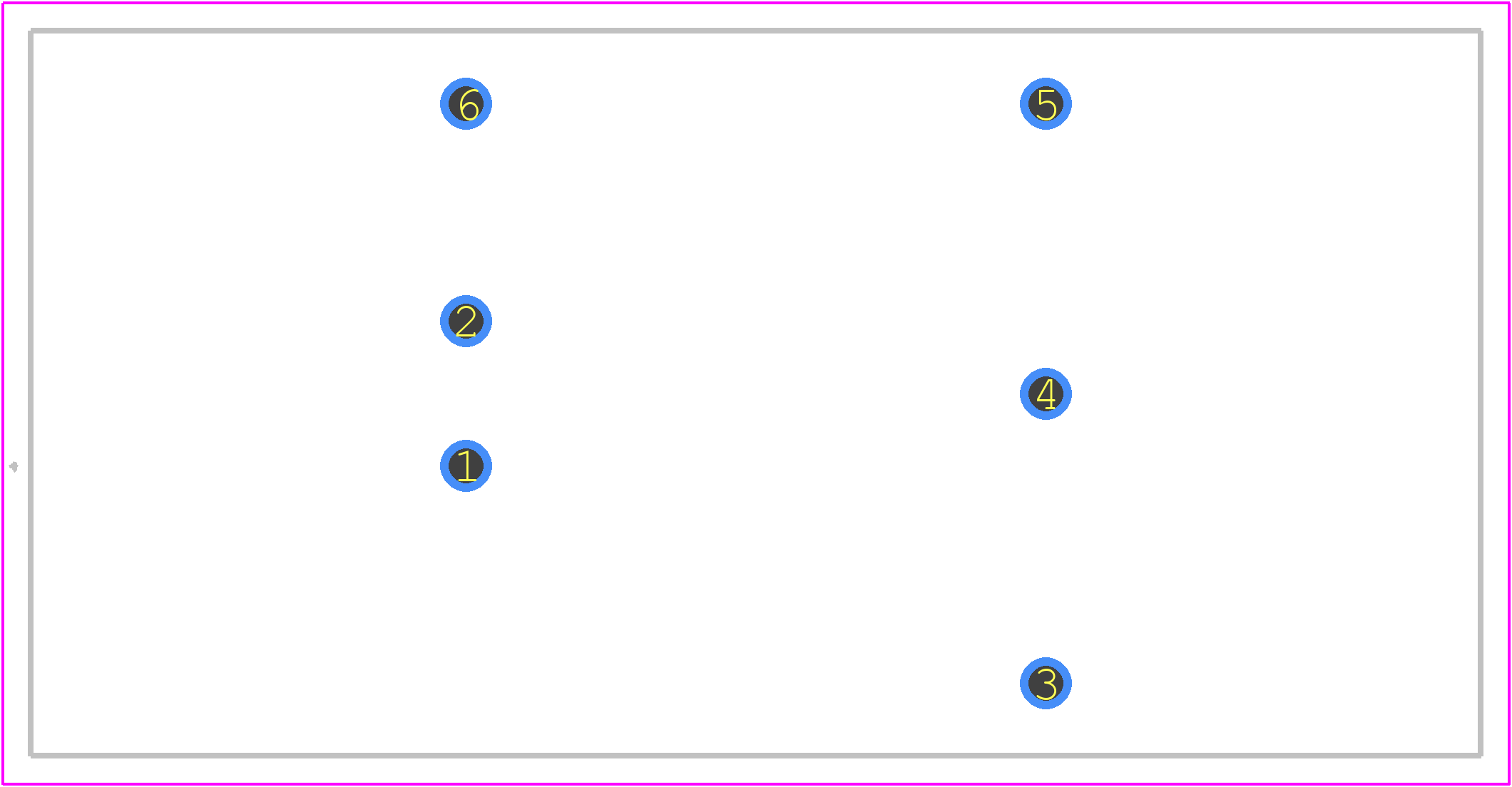

NSD10-12S3 Details

• Manufacturer Part Number:

  NSD10-12S3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  Module-6

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  6

• Additional Feature:

  SEATED HGT-NOM

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EN, TUV, UL

• Control Mode:

  VOLTAGE-MODE

• Efficiency (Main Output):

  72%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9.8 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XDMA-P6

• Length:

  50.8 mm

• Line Regulation-Max:

  1%

• Load Regulation-Max:

  2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  2.5 A

• Output Voltage-Max:

  3.366 V

• Output Voltage-Min:

  3.234 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

• Ripple Voltage (Main Out):

  0.0265125 Vrms

• Seated Height-Max:

  10 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  8.25 W

• Trim/Adjustable Output:

  NO

• Width:

  25.4 mm
