NSD15-12S12 - Mean Well

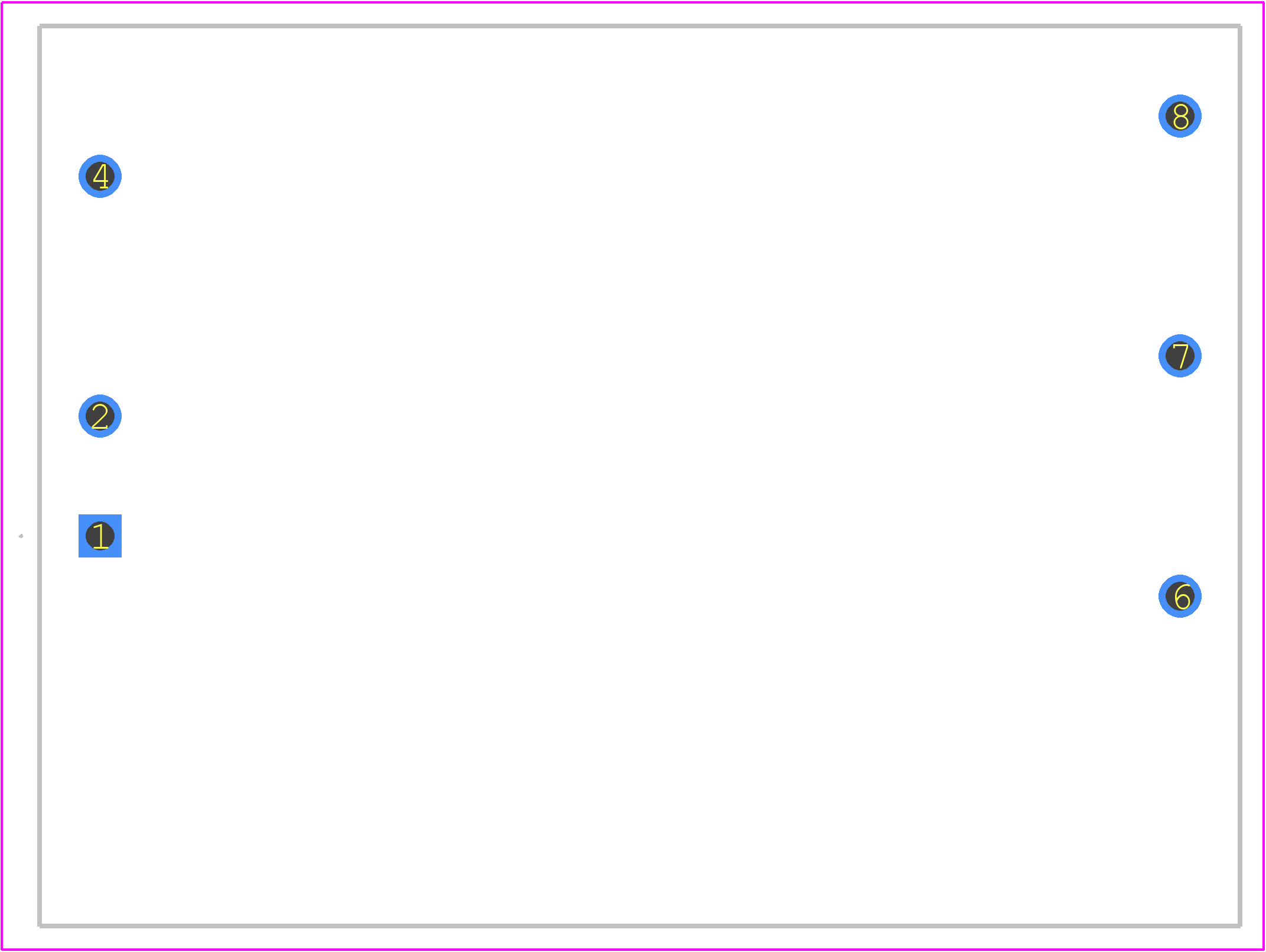

NSD15-12S12 Details

• Manufacturer Part Number:

  NSD15-12S12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-8/6

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EAC, EN, UKCA

• Efficiency (Main Output):

  81%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9.4 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-XDMA-P6

• Length:

  50.8 mm

• Line Regulation-Max:

  1%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  1.25 A

• Output Voltage-Max:

  12.6 V

• Output Voltage-Min:

  11.4 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,6LEAD,1.8

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0265125 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  10.82 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  0.1 s

• Width:

  38.1 mm
