NSD3661-Q1HTSPR - NOVOSENSE

Description: AEC Q-100 Grade 1 Qualified ? 3 floating gate drivers for N-channel MOSFET: Fixed turn on/off current and timing 4.5V to 50V operating range ? Integrated 2-stage charge-pump with spread spectrum Support 0% to 100% PWM operation Reverse protection MOSFET driver output ? Low current consumption in sleep mode (only for NSD3662) ? Protection and diagnostic? Supply voltage monitor Charge pump voltage monitor (VCP UV only for NSD3662) Gate d

Download NSD3661-Q1HTSPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

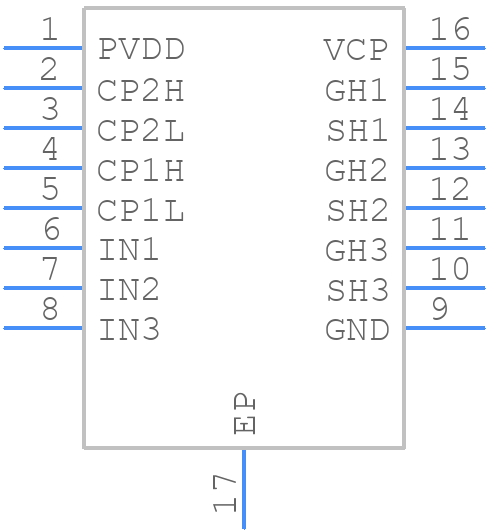

NSD3661-Q1HTSPR - NOVOSENSE - PCB symbol
click to zoom
PCB Footprints

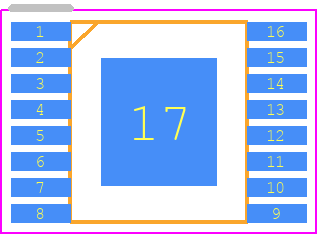

NSD3661-Q1HTSPR - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16
