NSI1042-Q1SWVR - NOVOSENSE

Description: Fully compatible with the ISO11898-2 standard  Up to 5000Vrms Insulation voltage  Power supply voltage VDD1: 2.5V to 5.5V VDD2: 4.5V to 5.5V  Bus fault protection of -58V to +58V  Transmit data (TXD) dominant time out function  Over current and over temperature protection  Data rate: up to 5Mbps  Ideal Passive, High Impedance Bus and Logic Terminals When Unpowered  High CMTI: 150kV/μs  Low loop delay: <220ns  High system level EMC performance: Enhanced system level ESD, EFT, Surge i

Download NSI1042-Q1SWVR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NSI1042-Q1SWVR model

Email notifications will be applied after download.

Send part feedback

Symbol

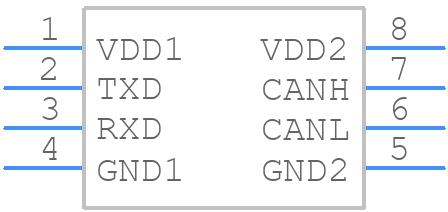

NSI1042-Q1SWVR - NOVOSENSE - PCB symbol
