Part Image

NSI1311 - NOVOSENSE

Description: Up to 5000Vrms Insulation voltage  0.02~2V, High-Impedance Input Voltage Range  Fixed Gain: 1  Low Offset Error and Drift: ±1.5mV (Max), -5~30μV/℃ (Max)  Low Gain Error and Drift: ±0.3% (Max), ±45ppm/℃ (Max)  Low Nonlinearity and Drift: ±0.05% (Max) for 0.02V~0.1V VIN ±0.04% (Max) for 0.1V~2V VIN ±1ppm/℃ (Typ)  SNR: 82dB (Typ, BW=10kHz), 70dB (Typ, BW=100kHz)  Wide bandwidth: 400kHz (Typ)  High CMTI: 150kV/μs (Typ)

Download NSI1311 Model

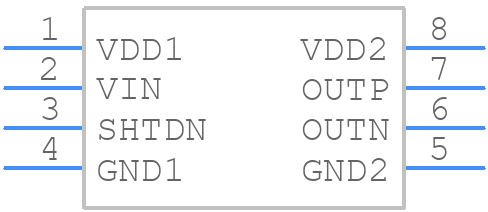

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NSI1311 - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - SOP8 (300mil)
click to zoom
3D Models
NSI1311 - NOVOSENSE  - 3D model - Small Outline Packages - SOP8 (300mil)
click to zoom

NSI1311 Details

  • Manufacturer Part Number:

    NSI1311

  • Manufacturer:

    Suzhou Novosense Microelectronics Co Ltd

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NSI1311 Overview

Use the download button to access the NSI1311 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSI13, or try a keyword search, such as Isolation Amplifiers
