Part Image

NSIP8842 - NOVOSENSE

Description: Up to 4500Vrms Insulation voltage  Power supply voltage: 3.3V to 5.5V  5V to 5V, 5V to 3.3V, support 100mA load current  3.3V to 3.3V, support 60mA load current  Over current and over temperature protection  Date rate: DC to 150Mbps  High CMTI: 150kV/us  Propagation delay: <15ns  High system level EMC performance: Enhanced system level ESD, EFT, Surge immunity  Operation temperature: -40℃~125℃  RoHS-compliant packages: SOW16

Download NSIP8842 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

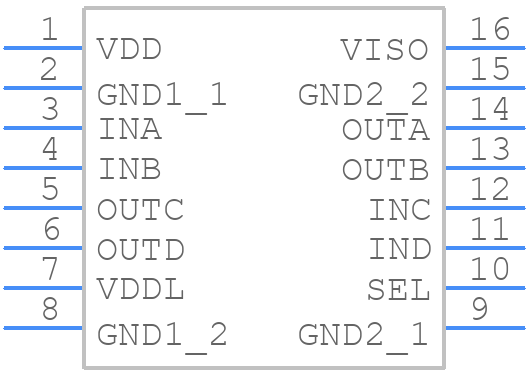

NSIP8842 - NOVOSENSE - PCB symbol
click to zoom
PCB Footprints
NSIP8842 - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - SOP16(300mil)cxcx
click to zoom
3D Models
NSIP8842 - NOVOSENSE - 3D model - Small Outline Packages - SOP16(300mil)cxcx
click to zoom

NSIP8842 Details

  • Manufacturer Part Number:

    NSIP8842

  • Manufacturer:

    Suzhou Novosense Microelectronics Co Ltd

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NSIP8842 Overview

Use the download button to access the NSIP8842 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSIP8, or try a keyword search, such as Other Interface ICs
