NSIP9540W0-Q1SWR - NOVOSENSE

Description: AEC Q-100 Qualified for Grade 1: TA from –40 °C to 125 °C  Up to 5000Vrms Insulation voltage  Power supply voltage: 3V to 5.25V

Download NSIP9540W0-Q1SWR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NSIP9540W0-Q1SWR model

Email notifications will be applied after download.

Send part feedback

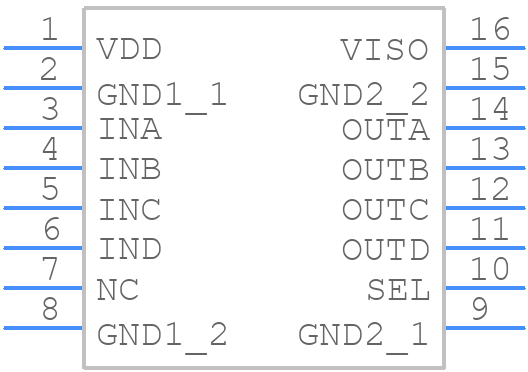

Symbol

NSIP9540W0-Q1SWR - NOVOSENSE - PCB symbol

PCB Footprints

NSIP9540W0-Q1SWR - NOVOSENSE PCB footprint - Small Outline Packages - Small Outline Packages - SOW16.

Datasheet Download Datasheet
Stock & Prices Price & Stock for NSIP9540W0-Q1SWR
Part Number NSIP9540W0-Q1SWR
Manufacturer NOVOSENSE
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOW16.
Released Date Aug 12, 2026
Last Modified Date Aug 12, 2026 6:22 PM UTC
Pinout / Pin List Click Here (Member Only)

NSIP9540W0-Q1SWR Details
