NSM2011 - NOVOSENSE

Description:  High bandwidth and fast response time  240kHz bandwidth  2.2us response time  High-precision current measurement  Differential Hall sets can immune stray field  High isolation level that meets UL standards  Maximum repeated isolation withstand voltage (VIROM): 1550Vpk

Download NSM2011 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NSM2011 model

Email notifications will be applied after download.

Send part feedback

Symbol

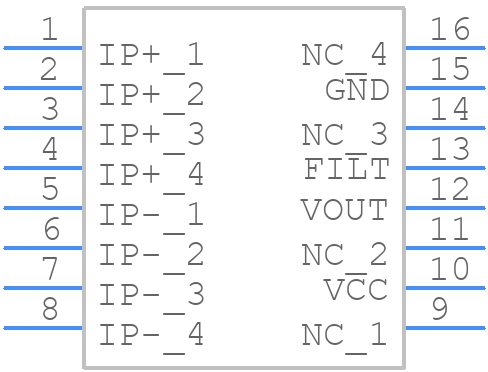

NSM2011 - NOVOSENSE - PCB symbol
