NSP8818MUTAG - onsemi

Description: 15V Clamp 35A (8/20µs) Ipp Tvs Diode Surface Mount 10-UDFN (3.5x2)

Download NSP8818MUTAG Model

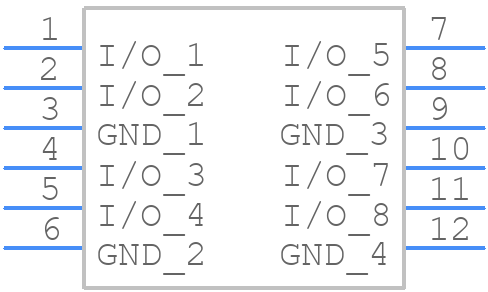

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NSP8818MUTAG - onsemi PCB footprint - Other - Other - UDFN10 3.5x2, 0.575P CASE 506CU ISSUE O
click to zoom
3D Models
NSP8818MUTAG - onsemi  - 3D model - Other - UDFN10 3.5x2, 0.575P CASE 506CU ISSUE O
click to zoom

NSP8818MUTAG Details

  • Manufacturer Part Number:

    NSP8818MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UDFN-10

  • Package Description:

    UDFN-10

  • Manufacturer Package Code:

    506CU

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Max:

    5 V

  • Breakdown Voltage-Min:

    3.2 V

  • Breakdown Voltage-Nom:

    3.5 V

  • Clamping Voltage-Max:

    15 V

  • Configuration:

    COMMON ANODE, 8 ELEMENTS, 8 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    8

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-5

  • Rep Pk Reverse Voltage-Max:

    3 V

  • Reverse Current-Max:

    0.5 µA

  • Reverse Test Voltage:

    3 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NSP8818MUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • Monitor input voltage, output voltage, current, and temperature. Implement over-voltage protection (OVP), under-voltage protection (UVP), and over-temperature protection (OTP) to ensure safe operation.
  • Use a combination of capacitors and inductors to filter the output. Optimize the filter design using simulation tools and consider the output impedance, load characteristics, and desired ripple and noise levels.
  • Use low-ESR capacitors with a minimum capacitance of 10uF for the input and output. Ensure the capacitors are rated for the maximum operating voltage and temperature range.
