A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device.
The NSPM5131MUTBG has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and storing the device in an ESD-protected package.
The NSPM5131MUTBG is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if it's necessary to use the device in such an environment, consider using a conformal coating or potting the device to protect it from moisture.
The recommended soldering profile for the NSPM5131MUTBG involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It's also recommended to use a solder with a melting point above 217°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NSPM5131MUTBG Overview

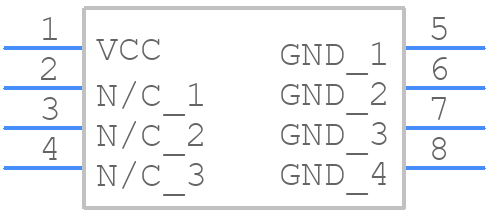

Use the download button to access the NSPM5131MUTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSPM5,
or try a keyword search, such as Transient Suppressors
