A good thermal design should include a solid ground plane, thermal vias, and a heat sink. The datasheet provides some guidelines, but onsemi also offers a dedicated application note (AND9233/D) that provides more detailed recommendations for PCB layout and thermal management.
In addition to following the recommended PCB layout and thermal design, it's essential to consider the device's thermal derating, which is specified in the datasheet. Ensure that the device operates within the recommended temperature range, and consider using thermal interface materials or heat sinks to improve heat dissipation.
The high current capability of the NSPM8181MUTBG requires careful consideration of PCB trace widths, copper thickness, and via design to ensure reliable operation. It's recommended to use wide traces, thick copper, and multiple vias to reduce resistance and thermal stress.
The NSPM8181MUTBG has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, it's still essential to implement external protection mechanisms, such as TVS diodes, fuses, or PTC resistors, to ensure the device's reliability and prevent damage from external faults.
onsemi provides a dedicated application note (AND9234/D) that outlines recommended test and measurement techniques for characterizing the NSPM8181MUTBG's performance, including setup, equipment, and measurement procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NSPM8181MUTBG Overview

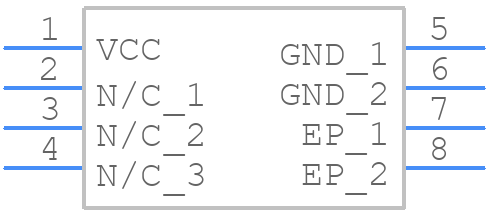

Use the download button to access the NSPM8181MUTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NSPM8,
or try a keyword search, such as Transient Suppressors
