NSPU5132MUTBG - onsemi

Description: 13.5 V UNIDIRECTIONAL ESD

Download NSPU5132MUTBG Model

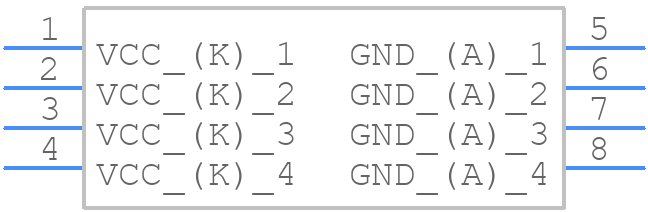

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NSPU5132MUTBG - onsemi PCB footprint - Other - Other - UDFN6, 1.8 x 2, 0.4P CASE 517CS ISSUE O
click to zoom
3D Models
NSPU5132MUTBG - onsemi  - 3D model - Other - UDFN6, 1.8 x 2, 0.4P CASE 517CS ISSUE O
click to zoom

NSPU5132MUTBG Details

  • Manufacturer Part Number:

    NSPU5132MUTBG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UDFN-6

  • Manufacturer Package Code:

    517CS

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    7 Weeks

  • Date Of Intro:

    2018-06-12

  • Manufacturer:

    onsemi

  • YTEOL:

    7.63

  • Breakdown Voltage-Max:

    17.5 V

  • Breakdown Voltage-Min:

    13.6 V

  • Breakdown Voltage-Nom:

    15.5 V

  • Case Connection:

    ANODE

  • Clamping Voltage-Max:

    24 V

  • Configuration:

    SINGLE, 1 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    4800 W

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-61000-4-2, 4-5

  • Rep Pk Reverse Voltage-Max:

    13.5 V

  • Reverse Current-Max:

    0.5 µA

  • Reverse Test Voltage:

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
