NSPU5201MUTBG - onsemi

Description: Unidirectional High Voltage ESD and Surge Protection; Provides ESD Protection to IEC61000−4−2 Level 4: ±30 kV Contact Discharge; Small Package: 1.8 mm x 2.0 mm; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Download NSPU5201MUTBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

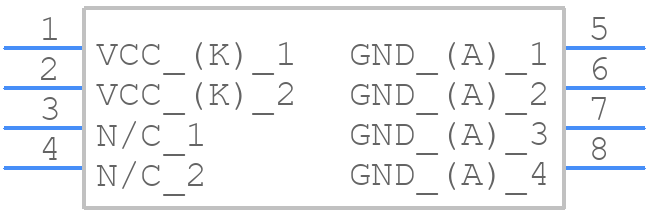

NSPU5201MUTBG - onsemi - PCB symbol
