NTB0102GF,115 - NXP

Description: Translation - Voltage Levels DUAL XCVR AUTO DRECT SENSING; 3-STATE

Download NTB0102GF,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

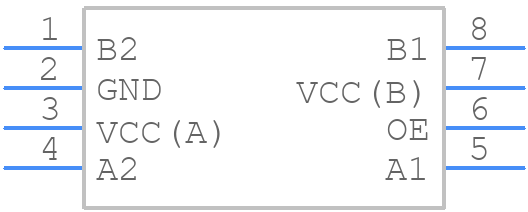

NTB0102GF,115 - NXP - PCB symbol
click to zoom
PCB Footprints
NTB0102GF,115 - NXP PCB footprint - Other - Other - SOT1089 (XSON8)
click to zoom
3D Models
NTB0102GF,115 - NXP - 3D model - Other - SOT1089 (XSON8)
click to zoom

NTB0102GF,115 Details

  • Manufacturer Part Number:

    NTB0102GF,115

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT1089

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

NTB0102GF,115 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NTB0102GF,115 is -40°C to 125°C.
  • To ensure signal integrity, use a 50-ohm transmission line, keep the signal traces short, and use a common ground plane. Also, use a termination resistor at the receiving end to match the impedance of the transmission line.
  • The recommended PCB layout for the NTB0102GF,115 includes a ground plane under the device, short and direct signal traces, and a common ground connection for the VCC and GND pins.
  • Yes, the NTB0102GF,115 is suitable for high-speed applications up to 10 Gbps. However, ensure that the PCB layout and signal routing are optimized for high-speed signals.
  • The NTB0102GF,115 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTB0102GF,115 Overview

Use the download button to access the NTB0102GF,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTB01, or try a keyword search, such as Level Translators
