NTB0104UK,012 - NXP

Description: Translation - Voltage Levels Dual supply translating transceiver; auto direction sensing; 3-state

Download NTB0104UK,012 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

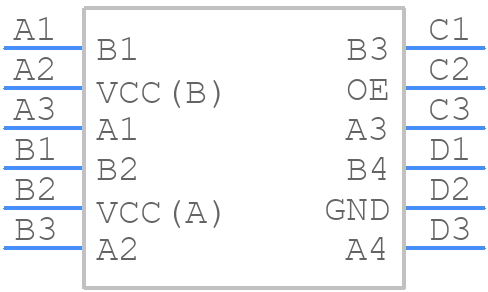

Symbol
NTB0104UK,012 - NXP - PCB symbol
click to zoom
PCB Footprints
NTB0104UK,012 - NXP PCB footprint - BGA - BGA - NTB0104UK-Q100 ntb0104uk-q100_po 12-05-21 13-04-1
click to zoom
3D Models
NTB0104UK,012 - NXP - 3D model - BGA - NTB0104UK-Q100 ntb0104uk-q100_po 12-05-21 13-04-1
click to zoom

NTB0104UK,012 Details

  • Manufacturer Part Number:

    NTB0104UK,012

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CSP

  • Package Description:

    WLCSP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    OL-NTB0104UK

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 1.65V TO 5.5V SUPPLY

  • Control Type:

    COMMON CONTROL

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    NTB0104

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.6 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    BUS TRANSCEIVER

  • Max I(ol):

    0.00002 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR, 7 INCH

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    14.2 ns

  • Propagation Delay (tpd):

    14.2 ns

  • Seated Height-Max:

    0.615 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.2 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.2 mm

NTB0104UK,012 Frequently Asked Questions (FAQs)

  • A good PCB layout for NTB0104UK,012 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure EMC with NTB0104UK,012, use a shielded enclosure, keep cables and connectors away from the device, and use a common-mode choke or ferrite bead on the USB lines. Additionally, follow good PCB design practices, such as using a solid ground plane and minimizing loop areas.
  • The maximum cable length supported by NTB0104UK,012 is approximately 3 meters (10 feet) for USB 2.0 and 1 meter (3.3 feet) for USB 3.2 Gen 1. However, the actual cable length may vary depending on the specific application and cable quality.
  • Yes, NTB0104UK,012 is compatible with USB-C connectors. However, ensure that the USB-C connector is configured correctly for the specific application, and follow the USB-C specification guidelines for proper implementation.
  • NTB0104UK,012 has an integrated power management system. To handle power management, ensure that the device is properly configured, and follow the recommended power-up and power-down sequences. Additionally, use a suitable power supply and decoupling capacitors to ensure stable operation.
