NTBL125N60S5H - onsemi

Description: 650 V @ TJ = 150°C; Leadless thin SMD package; Kelvin Source Configuration; Low Effective Output Capacitance (Typ. Coss(tr.) = 485 pF); Ultra Low Gate Charge (Typ. Qg = 37.1 nC); Typ. RDS(on) = 100 mΩ; 100% Avalanche Tested; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; Moisture Sensitivity Level 1 guarantee; Internal Gate Resistance: 1.08 Ω

Download NTBL125N60S5H Model

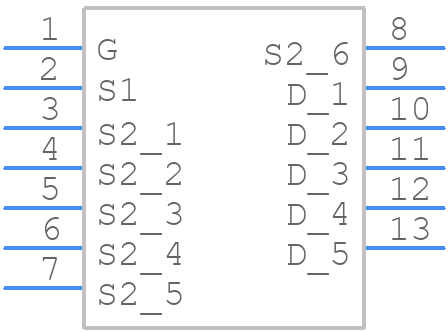

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

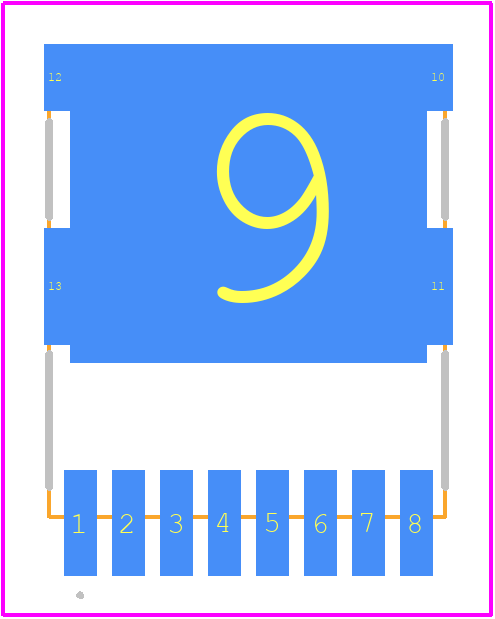

NTBL125N60S5H - onsemi PCB footprint - Other - Other - H−PSOF8L 9.90x11.68, 1.20P CASE 100DC ISSUE O_2024
click to zoom
3D Models
NTBL125N60S5H - onsemi  - 3D model - Other - H−PSOF8L 9.90x11.68, 1.20P CASE 100DC ISSUE O_2024
click to zoom

NTBL125N60S5H Details

  • Manufacturer Part Number:

    NTBL125N60S5H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    H-PSOF8L 9.90x10.38x2.30, 1.20P

  • Package Description:

    HSOF-8

  • Manufacturer Package Code:

    100DC

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    184 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE AND KELVIN SENSOR

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    22 A

  • Drain-source On Resistance-Max:

    0.125 Ω

  • FET Technology:

    SUPERJUNCTION MOSFET

  • JESD-30 Code:

    R-PSSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    152 W

  • Pulsed Drain Current-Max (IDM):

    77 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTBL125N60S5H Overview

Use the download button to access the NTBL125N60S5H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBL1, or try a keyword search, such as Power Field-Effect Transistors
