NTBLS0D7N06C - onsemi

Description: Low QG and Capacitance; Lowers Switching Noise/EMI; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; Low RDS(on)

Download NTBLS0D7N06C Model

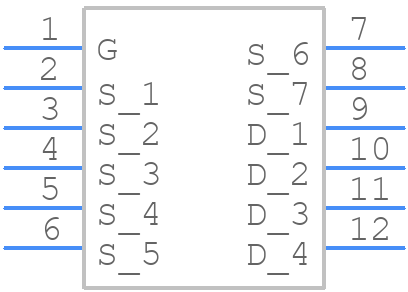

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTBLS0D7N06C - onsemi PCB footprint - Other - Other - NTBLS0D7N06C-2
click to zoom
3D Models
NTBLS0D7N06C - onsemi  - 3D model - Other - NTBLS0D7N06C-2
click to zoom

NTBLS0D7N06C Details

  • Manufacturer Part Number:

    NTBLS0D7N06C

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TO-LL 8L

  • Manufacturer Package Code:

    100CU

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Avalanche Energy Rating (Eas):

    800 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    470 A

  • Drain-source On Resistance-Max:

    0.00075 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    92 pF

  • JEDEC-95 Code:

    MO-299A

  • JESD-30 Code:

    R-PSSO-F2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    314 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NTBLS0D7N06C Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the NTBLS0D7N06C is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • To ensure proper biasing, follow the recommended operating conditions outlined in the datasheet. This includes setting the gate-source voltage (Vgs) between 2V and 5V, and ensuring the drain-source voltage (Vds) is within the recommended range. Additionally, consider using a gate driver or voltage regulator to maintain a stable voltage supply.
  • For optimal thermal management, use a PCB layout that allows for good heat dissipation. This includes using a thermal pad or heat sink, and ensuring good airflow around the device. Follow the recommended PCB layout guidelines in the datasheet, and consider using thermal simulation tools to optimize your design.
  • To protect the NTBLS0D7N06C from overvoltage and overcurrent conditions, consider using voltage regulators, overvoltage protection (OVP) circuits, and current limiting resistors. Additionally, ensure that your design includes proper fault detection and protection mechanisms, such as overcurrent protection (OCP) and overtemperature protection (OTP).
  • The recommended gate drive circuits for the NTBLS0D7N06C include using a dedicated gate driver IC, such as the FAN5350 or FAN5333, or a discrete gate drive circuit using a BJT or MOSFET. The gate drive circuit should be designed to provide a fast rise and fall time, and ensure the gate-source voltage (Vgs) is within the recommended range.
