NTBLS0D8N08XTXG - onsemi

Description: Pb Free and Halogen/BFR Free; Low Qrr and Softer Recovery Body Diode; Ultra Low RDS(on); Low Qg

Download NTBLS0D8N08XTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

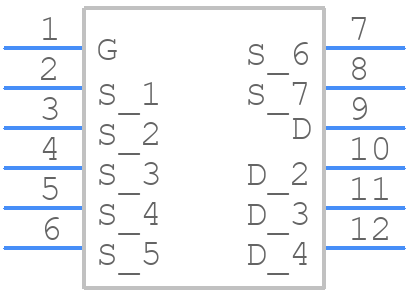

NTBLS0D8N08XTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NTBLS0D8N08XTXG - onsemi PCB footprint - Other - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE C
click to zoom
3D Models
NTBLS0D8N08XTXG - onsemi - 3D model - Other - H−PSOF8L 11.68x9.80 CASE 100CU ISSUE C
click to zoom

NTBLS0D8N08XTXG Details

  • Manufacturer Part Number:

    NTBLS0D8N08XTXG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTBLS0D8N08XTXG Overview

Use the download button to access the NTBLS0D8N08XTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTBLS, or try a keyword search, such as Power Field-Effect Transistors
