NTE0515MC-R - Murata Electronics

Description: Isolated DC/DC Converters 5Vin 15Vout 66mA Isolated 1W SMT

Download NTE0515MC-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

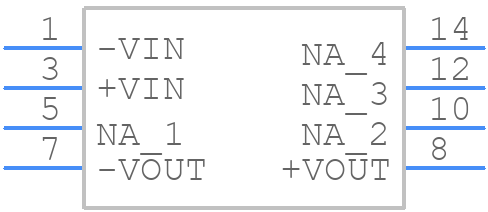

Symbol
NTE0515MC-R - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NTE0515MC-R - Murata Electronics PCB footprint - Other - Other - NTE0515MC-R-1
click to zoom
3D Models
NTE0515MC-R - Murata Electronics - 3D model - Other - NTE0515MC-R-1
click to zoom

NTE0515MC-R Details

  • Manufacturer Part Number:

    NTE0515MC-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDMA-G8

  • Load Regulation-Max:

    7%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.066 A

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8/14,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    0.99 W

  • Trim/Adjustable Output:

    NO

NTE0515MC-R Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a minimum pad size of 1.3mm x 0.8mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
  • To ensure reliable operation, it's essential to provide a thermal path from the device to a heat sink or a metal core PCB. A thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K is recommended.
  • Murata recommends derating the voltage by 10% to ensure reliable operation and to account for any voltage tolerances. For example, if the maximum rated voltage is 15V, the maximum allowed voltage derating would be 13.5V.
  • While the NTE0515MC-R is designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB design and layout considerations. However, it's essential to evaluate the device's performance and ensure it meets the specific application requirements.
  • To prevent damage, store the NTE0515MC-R in a dry, cool place away from direct sunlight. Handle the device by the edges or the recommended handling areas to prevent electrostatic discharge (ESD) damage. Use anti-static packaging and follow proper ESD handling procedures during assembly and testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTE0515MC-R Overview

Use the download button to access the NTE0515MC-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTE05, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
