NTE1212MC-R - Murata Electronics

Description: Isolated Module DC DC Converter 1 Output 12V 83mA 10.8V - 13.2V Input

Download NTE1212MC-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

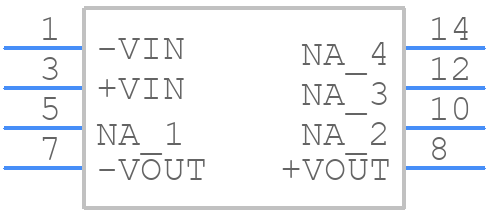

NTE1212MC-R - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NTE1212MC-R - Murata Electronics PCB footprint - Other - Other - NTE1212MC-R-1
click to zoom
3D Models
NTE1212MC-R - Murata Electronics - 3D model - Other - NTE1212MC-R-1
click to zoom

NTE1212MC-R Details

  • Manufacturer Part Number:

    NTE1212MC-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDMA-G8

  • JESD-609 Code:

    e4

  • Load Regulation-Max:

    7.5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.083 A

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8/14,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    0.996 W

  • Trim/Adjustable Output:

    NO

NTE1212MC-R Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NTE1212MC-R can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • The NTE1212MC-R has a thermal resistance of 10°C/W. To handle thermal considerations, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider heat sinks or thermal pads if necessary.
  • The maximum operating temperature range for the NTE1212MC-R is -40°C to 125°C. However, the device's performance and reliability may degrade if operated at extreme temperatures for extended periods.
  • The NTE1212MC-R is designed to withstand moderate vibration levels. However, for high-vibration environments, additional mechanical support or mounting may be necessary to ensure the device's reliability and performance.
  • Follow the recommended soldering profile and temperature guidelines provided in the Murata Soldering Guidelines document. Ensure the PCB is clean and free of oxidation, and use a solder with a melting point compatible with the device's temperature rating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTE1212MC-R Overview

Use the download button to access the NTE1212MC-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTE12, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
