The maximum safe operating temperature for the NTE243 is 150°C, although the datasheet only specifies a maximum junction temperature of 125°C. However, it's essential to derate the device for reliable operation.
While the NTE243 can be used as a switch, it's not ideal for high-frequency circuits due to its relatively high transition frequency (fT) of 30 MHz. For high-frequency applications, consider using a transistor with a higher fT, such as the NTE244 or NTE245.
To ensure proper biasing for linear amplifier applications, use a voltage divider network to set the base voltage, and choose a collector resistor that provides the desired output impedance. Additionally, consider using a negative feedback network to improve linearity and stability.
The recommended storage temperature for the NTE243 is -40°C to 100°C. Storing the device outside this range may affect its reliability and performance.
The NTE243 has a maximum collector-emitter voltage rating of 40V. While it can be used in high-voltage applications, it's essential to ensure the device is properly biased and that the voltage rating is not exceeded to prevent damage or failure.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTE243 Overview

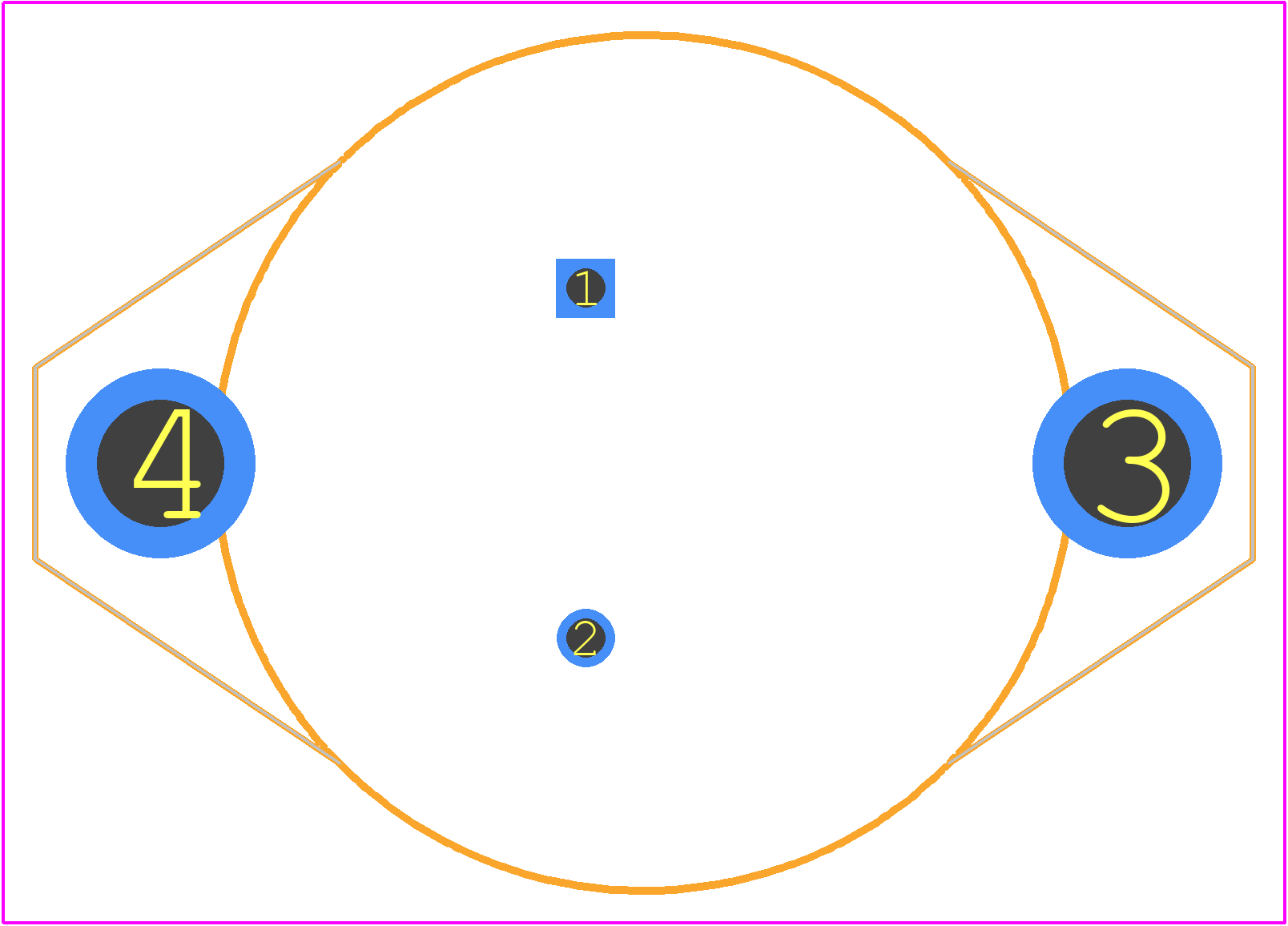

Use the download button to access the NTE243 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NTE24,
or try a keyword search, such as Power Bipolar Transistors
