NTLJD3119CTBG - onsemi

Description: Mosfet Array 20V 2.6A, 2.3A 710mW Surface Mount 6-WDFN (2x2)

Download NTLJD3119CTBG Model

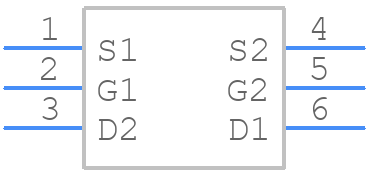

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTLJD3119CTBG - onsemi PCB footprint - Other - Other - NTLJD3119CTBG-2
click to zoom
3D Models
NTLJD3119CTBG - onsemi  - 3D model - Other - NTLJD3119CTBG-2
click to zoom

NTLJD3119CTBG Details

  • Manufacturer Part Number:

    NTLJD3119CTBG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN6 2x2, 0.65P

  • Pin Count:

    6

  • Manufacturer Package Code:

    506AN

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    2.6 A

  • Drain-source On Resistance-Max:

    0.065 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    43 pF

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    2.3 W

  • Pulsed Drain Current-Max (IDM):

    18 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

NTLJD3119CTBG Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to onsemi's application note AND8093/D for more details.
  • Ensure the device is operated within the recommended junction temperature (Tj) range of -40°C to 150°C. Implement proper thermal management, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
  • Use ESD protection devices, such as TVS diodes, on the input and output pins to prevent damage from electrostatic discharge. Follow onsemi's ESD protection guidelines and the IEC 61000-4-2 standard for ESD testing.
  • Yes, the NTLJD3119CTBG is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions, and consult onsemi's automotive application notes for specific guidance.
  • Consult onsemi's troubleshooting guide and application notes for the NTLJD3119CTBG. Perform visual inspections, check for soldering issues, and verify the device is operated within the recommended specifications. If issues persist, contact onsemi's technical support for further assistance.
