NTM1 - Neutrik

Description: 600 Impedance Primary Ohms 600 Impedance Secondary Ohms 1:1 Audio Transformer Through Hole fully shielded, 13.5kOhm

Download NTM1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

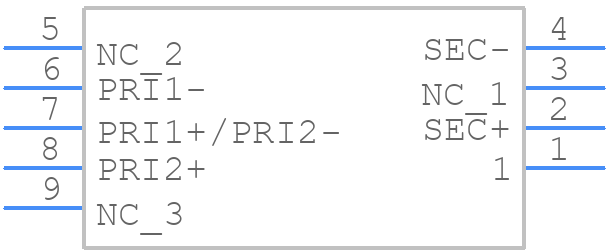

NTM1 - Neutrik - PCB symbol
click to zoom
PCB Footprints

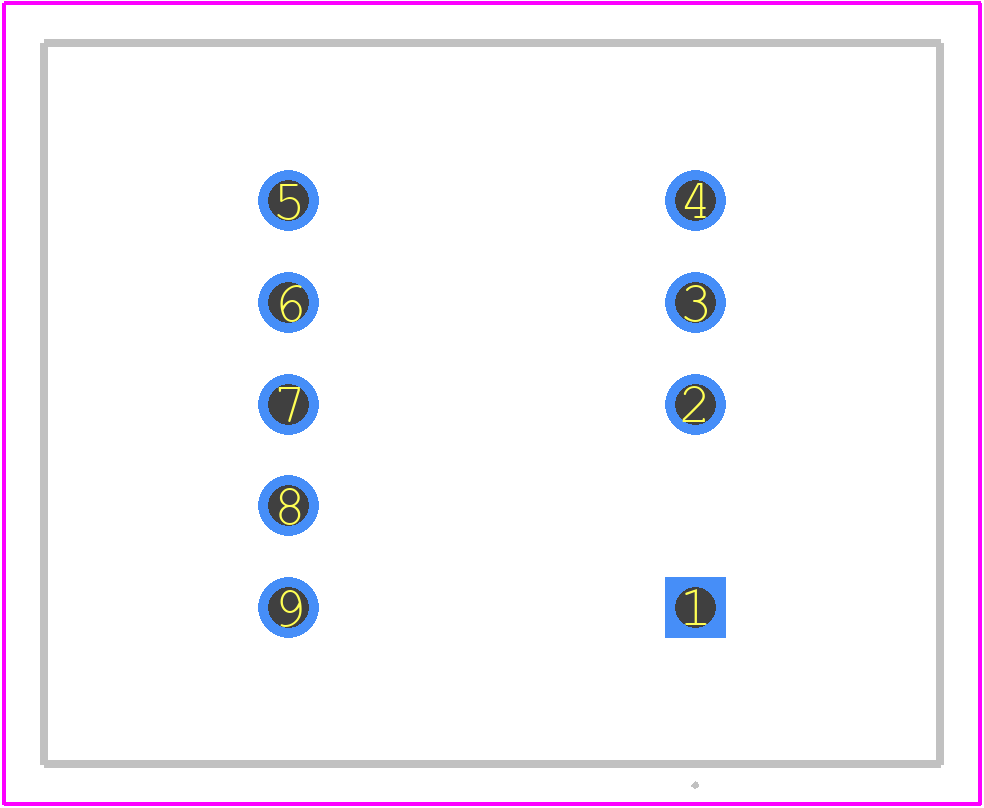

NTM1 - Neutrik PCB footprint - Other - Other - NTM1-1
click to zoom
3D Models
NTM1 - Neutrik - 3D model - Other - NTM1-1
click to zoom

NTM1 Details

  • Manufacturer Part Number:

    NTM1

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Neutrik USA Inc

  • YTEOL:

    7

  • Additional Feature:

    TURNS RATIO:1:1

  • Application:

    AUDIO

  • Mounting Feature:

    PCB MOUNT

  • Operating Frequency-Max:

    20 kHz

  • Operating Frequency-Min:

    0.02 kHz

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTM1 Overview

Use the download button to access the NTM1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Audio Transformers

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
