NTMD6N02R2G - onsemi

Description: Ultra Low RDS(on); Higher Efficiency Extending Battery Life; Logic Level Gate Drive; Miniature Dual SO-8 Surface Mount Package; Diode Exhibits High Speed, Soft Recovery; Avalanche Energy Specified; SO-8 Mounting Information Provided

Download NTMD6N02R2G Model

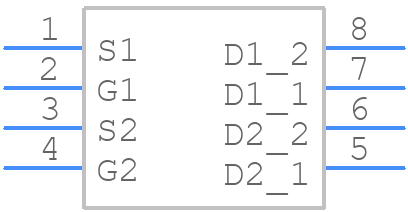

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTMD6N02R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NTMD6N02R2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NTMD6N02R2G Details

  • Manufacturer Part Number:

    NTMD6N02R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.4

  • Additional Feature:

    LOGIC LEVEL COMPATIBLE

  • Avalanche Energy Rating (Eas):

    360 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    3.92 A

  • Drain-source On Resistance-Max:

    0.035 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    180 pF

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.73 W

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    205 ns

  • Turn-on Time-Max (ton):

    110 ns

NTMD6N02R2G Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the NTMD6N02R2G is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • To ensure proper biasing, follow the recommended operating conditions outlined in the datasheet. This includes setting the gate-source voltage (Vgs) between 2V and 5V, and the drain-source voltage (Vds) between 10V and 60V, depending on the application.
  • For optimal thermal performance, use a PCB layout that allows for good heat dissipation. This includes using a thermal pad, thermal vias, and a heat sink if necessary. Ensure the device is mounted on a thermally conductive material, and follow the recommended land pattern and soldering guidelines.
  • Yes, the NTMD6N02R2G is suitable for high-frequency switching applications up to 1 MHz. However, ensure that the device is properly biased and the PCB layout is optimized for high-frequency operation to minimize losses and ringing.
  • To protect the NTMD6N02R2G from ESD, follow proper handling and storage procedures. Use an ESD wrist strap or mat, and ensure that the device is stored in an anti-static bag or container. During PCB assembly, use ESD-safe tools and materials to prevent damage.
