The maximum junction temperature (Tj) that the NTMS7N03R2 can withstand is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and prevent thermal runaway.
To ensure the NTMS7N03R2 is properly biased, follow the recommended operating conditions in the datasheet, including the gate-source voltage (Vgs) and drain-source voltage (Vds) ratings. Additionally, ensure the device is operated within the recommended current and power dissipation limits.
For optimal thermal management, use a PCB layout that provides good thermal conductivity and heat dissipation. This includes using a thermal pad on the bottom of the device, and ensuring good copper coverage and thermal vias. Additionally, consider using a heat sink or thermal interface material to further improve heat dissipation.
To protect the NTMS7N03R2 from ESD, follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, ensure that the device is properly grounded during assembly and testing, and consider using ESD protection devices or circuits in the final application.
The NTMS7N03R2 is a high-reliability device with a typical lifetime of 10-15 years or more, depending on operating conditions and environmental factors. However, it's essential to follow proper design, assembly, and testing procedures to ensure the device meets its expected lifetime.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NTMS7N03R2 Overview

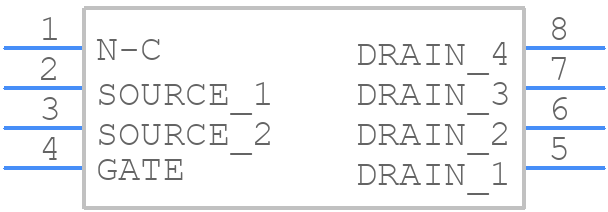

Use the download button to access the NTMS7N03R2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTMS7,
or try a keyword search, such as Power Field-Effect Transistors
