NTMTS0D6N04CTXG - onsemi

Description: Very Low RDS(on), Shielded Gate Trench Technology; Low Profile PQFN 8x8 package; Maximum junction temperature of 175C; RoHS Compliant

Download NTMTS0D6N04CTXG Model
Schematic

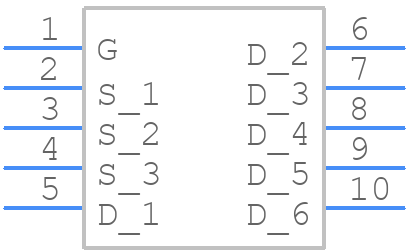

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTMTS0D6N04CTXG - onsemi PCB footprint - Other - Other - DFNW8 8.3x8.4, 2P CASE 507AP ISSUE O
click to zoom
3D Models
NTMTS0D6N04CTXG - onsemi  - 3D model - Other - DFNW8 8.3x8.4, 2P CASE 507AP ISSUE O
click to zoom

NTMTS0D6N04CTXG Details

  • Manufacturer Part Number:

    NTMTS0D6N04CTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Package Description:

    DFNW-8

  • Manufacturer Package Code:

    507AP

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-01-08

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    2058 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    533 A

  • Drain-source On Resistance-Max:

    0.00048 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    199 pF

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    245 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON
