NTMTS0D7N06CTXG - onsemi

Description: RoHS Compliant; Very Low RDS(on), Shielded Gate Trench Technology; Low Profile PQFN 8x8 package; Maximum junction temperature of 175C

Download NTMTS0D7N06CTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

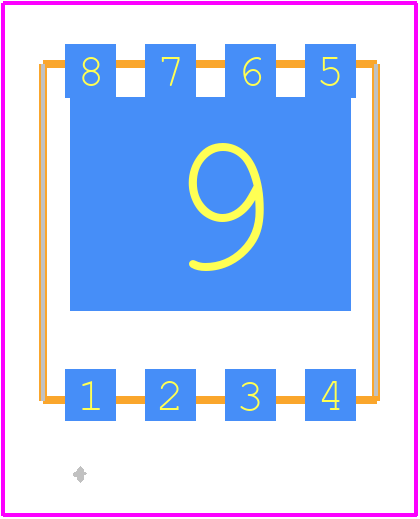

NTMTS0D7N06CTXG - onsemi PCB footprint - Other - Other - NTMTS0D7N06CTXG-1
click to zoom
3D Models
NTMTS0D7N06CTXG - onsemi  - 3D model - Other - NTMTS0D7N06CTXG-1
click to zoom

NTMTS0D7N06CTXG Details

  • Manufacturer Part Number:

    NTMTS0D7N06CTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFNW-8

  • Manufacturer Package Code:

    507AP

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-08-06

  • Manufacturer:

    onsemi

  • YTEOL:

    5.6

  • Avalanche Energy Rating (Eas):

    1754 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    464 A

  • Drain-source On Resistance-Max:

    0.00072 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    174 pF

  • JESD-30 Code:

    R-PDSO-F5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    294.6 W

  • Pulsed Drain Current-Max (IDM):

    900 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

NTMTS0D7N06CTXG Frequently Asked Questions (FAQs)

  • The maximum operating frequency of NTMTS0D7N06CTXG is 100 kHz, but it can be operated at higher frequencies with reduced performance.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The maximum input voltage that NTMTS0D7N06CTXG can handle is 18V, but it is recommended to operate within the specified input voltage range of 6.5V to 16V for optimal performance.
  • Yes, NTMTS0D7N06CTXG is rated for operation up to 150°C, but the maximum junction temperature should not exceed 175°C.
  • The power dissipation of NTMTS0D7N06CTXG can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
