NTP52101G0JHKZ - NXP

Description: Interface - Specialized NTP52101G0JHK

Download NTP52101G0JHKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

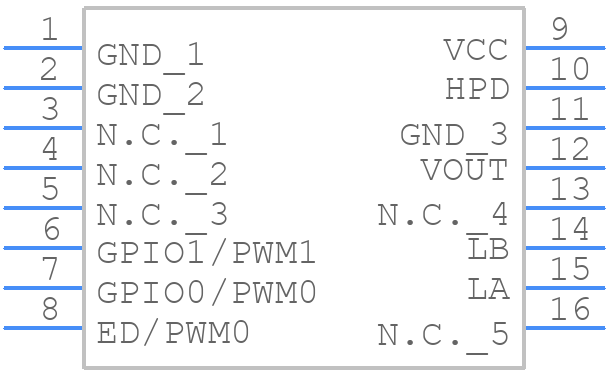

NTP52101G0JHKZ - NXP - PCB symbol
click to zoom
PCB Footprints
NTP52101G0JHKZ - NXP PCB footprint - Other - Other - NTP52101G0JHKZ-2
click to zoom
3D Models
NTP52101G0JHKZ - NXP - 3D model - Other - NTP52101G0JHKZ-2
click to zoom

NTP52101G0JHKZ Details

  • Manufacturer Part Number:

    NTP52101G0JHKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    XQFN-16

  • HTS Code:

    8542.32.00

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-01-15

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • JESD-30 Code:

    R-PQCC-N16

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,1X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

NTP52101G0JHKZ Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11542, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • The input capacitor values depend on the input voltage, output voltage, and output current. NXP recommends using the capacitor selection guide in the datasheet or consulting with an NXP FAE (Field Application Engineer) for specific guidance.
  • The maximum allowed voltage on the EN pin is 6V. To ensure it's not exceeded, use a voltage divider or a zener diode to limit the voltage, and add a pull-down resistor to prevent unwanted enable signals.
  • NXP provides a troubleshooting guide in the application note AN11543, which covers common issues, diagnostic techniques, and repair procedures. Additionally, consult the datasheet and contact NXP support for further assistance.
  • Yes, the NTP52101G0JHKZ is qualified for automotive and high-reliability applications. However, ensure that you follow the specific requirements and guidelines for these applications, such as AEC-Q100 and ISO 26262, and consult with NXP support for certification and compliance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTP52101G0JHKZ Overview

Use the download button to access the NTP52101G0JHKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTP52, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
