NTP53121G0JHKZ - NXP

Description: NXP - NTP53121G0JHKZ - RFID, NTAG 5 Link, 2 KB, 13.553 MHz to 13.567 MHz, XQFN-16

Download NTP53121G0JHKZ Model
Schematic

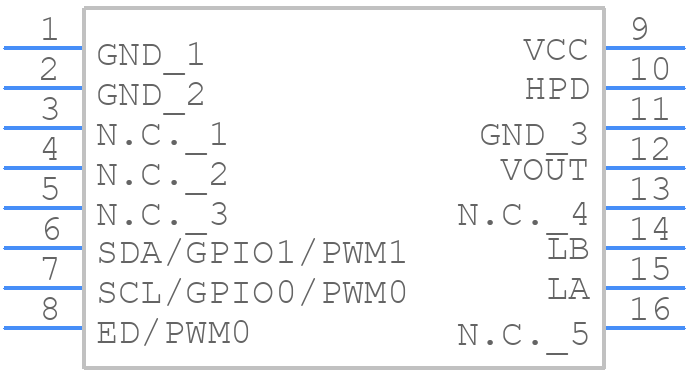

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTP53121G0JHKZ - NXP PCB footprint - Other - Other - SOT1161-2
click to zoom
3D Models
NTP53121G0JHKZ - NXP  - 3D model - Other - SOT1161-2
click to zoom

NTP53121G0JHKZ Details

  • Manufacturer Part Number:

    NTP53121G0JHKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    XQFN-16

  • HTS Code:

    8542.32.00

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-01-15

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Additional Feature:

    Operating temp for EEPROM Write operation is -40 to 85 deg cel

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

NTP53121G0JHKZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the NTP53121G0JHKZ is -40°C to 125°C.
  • To ensure the stability of the output voltage, it is recommended to use a high-quality output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value, as specified in the datasheet.
  • The maximum input voltage that the NTP53121G0JHKZ can handle is 18V. Exceeding this voltage may cause damage to the device.
  • The output voltage of the NTP53121G0JHKZ can be calculated using the formula: Vout = Vref * (1 + R1/R2), where Vref is the internal reference voltage, and R1 and R2 are the resistors in the feedback network.
  • The EN (Enable) pin is used to enable or disable the output of the NTP53121G0JHKZ. When the EN pin is pulled low, the output is disabled, and when it is pulled high, the output is enabled.
