Part Image

NTP53321G0JHKZ - NXP

Description: Interface - Specialized NTAG

Download NTP53321G0JHKZ Model

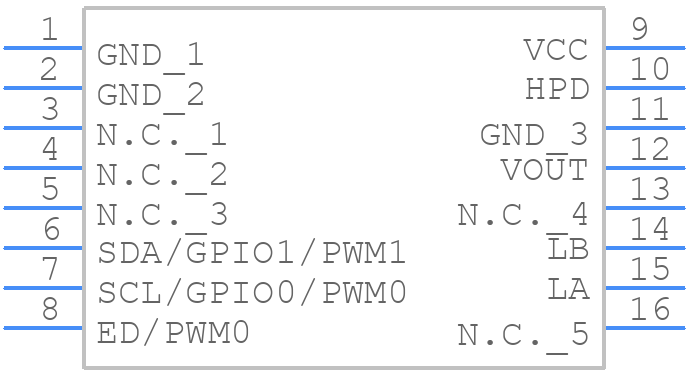

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NTP53321G0JHKZ - NXP PCB footprint - Other - Other - NTP53321G0JHKZ-5
click to zoom
3D Models
NTP53321G0JHKZ - NXP  - 3D model - Other - NTP53321G0JHKZ-5
click to zoom

NTP53321G0JHKZ Details

  • Manufacturer Part Number:

    NTP53321G0JHKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    XQFN-16

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.32.00

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-01-15

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Additional Feature:

    Operating temp for EEPROM Write operation is -40 to 85 deg cel

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PQCC-N16

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

NTP53321G0JHKZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the NTP53321G0JHKZ is -40°C to 125°C.
  • To ensure proper power-on, make sure to follow the recommended power-up sequence: VDDIO, VDD, and then VBAT. Also, ensure that the input voltage is within the recommended range of 1.65V to 3.6V.
  • The VBAT pin is used to connect a battery or a capacitor to store the RTC (Real-Time Clock) data when the main power is off. This allows the RTC to maintain its accuracy even when the main power is off.
  • To configure the NTP53321G0JHKZ for low-power operation, set the device to sleep mode by writing to the control registers. You can also reduce the clock frequency and disable unnecessary peripherals to minimize power consumption.
  • The NTP53321G0JHKZ supports a maximum clock frequency of 32 kHz.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTP53321G0JHKZ Overview

Use the download button to access the NTP53321G0JHKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTP53, or try a keyword search, such as Other Interface ICs
