NTS0102GD-Q100H - NXP

Description: Translation - Voltage Levels Dual supply translating transcvr

Download NTS0102GD-Q100H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

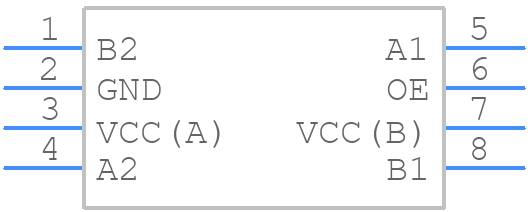

Symbol
NTS0102GD-Q100H - NXP - PCB symbol
click to zoom
PCB Footprints
NTS0102GD-Q100H - NXP PCB footprint - Other - Other - NTS0102GD-Q100H-2
click to zoom
3D Models
NTS0102GD-Q100H - NXP - 3D model - Other - NTS0102GD-Q100H-2
click to zoom

NTS0102GD-Q100H Details

  • Manufacturer Part Number:

    NTS0102GD-Q100H

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    XSON, SOLCC8,.04,20

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT996-2

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Delay-Max:

    8.8 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XSON

  • Package Equivalence Code:

    SOLCC8,.04,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.3 V

  • Supply Voltage1-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

NTS0102GD-Q100H Frequently Asked Questions (FAQs)

  • A good PCB layout for the NTS0102GD-Q100H involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper powering and decoupling, connect the VCC pin to a stable power supply, and add a 100nF decoupling capacitor between VCC and GND, placed as close to the device as possible. Additionally, add a 10uF bulk capacitor to the power supply lines.
  • The NTS0102GD-Q100H can operate up to 400 MHz, but the maximum frequency depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for more information.
  • To prevent ESD damage, handle the device by the body or use an anti-static wrist strap, and ensure the PCB is designed with ESD protection in mind, such as using ESD protection diodes or resistors.
  • The NTS0102GD-Q100H has a junction-to-ambient thermal resistance of 125°C/W. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device will be operating at high temperatures or high currents.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTS0102GD-Q100H Overview

Use the download button to access the NTS0102GD-Q100H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTS01, or try a keyword search, such as Level Translators
