NTS0102JKZ - NXP

Description: 2-bit dual supply translating transceiver, direction sense, 50Mbit/s

Download NTS0102JKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

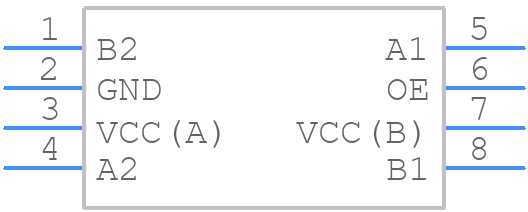

NTS0102JKZ - NXP - PCB symbol
click to zoom
PCB Footprints
NTS0102JKZ - NXP PCB footprint - Other - Other - SOT2015-1
click to zoom
3D Models
NTS0102JKZ - NXP - 3D model - Other - SOT2015-1
click to zoom

NTS0102JKZ Details

  • Manufacturer Part Number:

    NTS0102JKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    X2SON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Delay-Max:

    8.5 ns

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    1.35 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Latch or Register:

    LATCH

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.04,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.3 V

  • Supply Voltage1-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

NTS0102JKZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the NTS0102JKZ should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliable operation over the entire temperature range (-40°C to 125°C), it's essential to follow proper PCB design and layout guidelines, use a suitable thermal interface material, and ensure adequate heat dissipation. Additionally, consider using a thermally enhanced package or a heat sink if necessary.
  • The NTS0102JKZ can drive capacitive loads up to 100 pF, but it's essential to consider the device's output impedance and the load's impedance to ensure signal integrity. For larger capacitive loads, consider using a buffer or a dedicated line driver.
  • The NTS0102JKZ has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials, tools, and equipment, and consider adding external ESD protection devices if necessary.
  • The NTS0102JKZ requires a specific power sequencing to ensure proper operation. The VCC pin should be powered up before the VREF pin, and the VREF pin should be powered up before the input signals. A power-on reset circuit can help ensure proper power sequencing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTS0102JKZ Overview

Use the download button to access the NTS0102JKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTS01, or try a keyword search, such as Level Translators
