NTS0102TL-Q100H - NXP

Description: Translation - Voltage Levels Dual supply translating transceiver; open drain; auto direction sensing

Download NTS0102TL-Q100H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

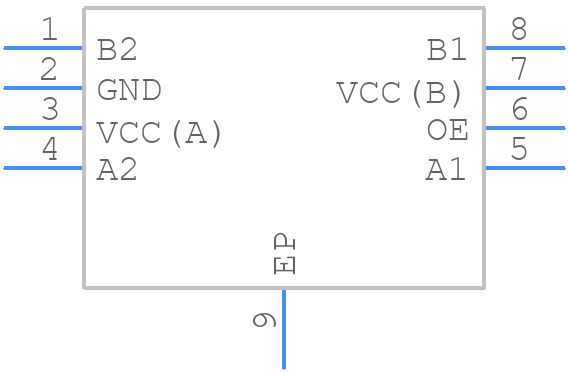

Symbol
NTS0102TL-Q100H - NXP - PCB symbol
click to zoom
PCB Footprints
NTS0102TL-Q100H - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - NTS0102TL-Q100H
click to zoom
3D Models
NTS0102TL-Q100H - NXP - 3D model - Small Outline No-lead - NTS0102TL-Q100H
click to zoom

NTS0102TL-Q100H Details

  • Manufacturer Part Number:

    NTS0102TL-Q100H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    XSON-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Delay-Max:

    8.8 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XSON

  • Package Equivalence Code:

    SOLCC8,.04,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, EXTREMELY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max:

    0.03 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.3 V

  • Supply Voltage1-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NTS0102TL-Q100H Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11160, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The NTS0102TL-Q100H requires a stable power supply with adequate decoupling capacitors to ensure proper operation. A minimum of 100nF decoupling capacitor is recommended, and it should be placed as close as possible to the device. Additionally, a 10uF bulk capacitor can be used to filter out noise and ripple on the power supply lines.
  • The NTS0102TL-Q100H is rated for operation from -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and reliability. Operating outside this range may affect the device's performance, reliability, and lifespan.
  • NXP provides a troubleshooting guide in the application note AN11161, which covers common issues and their solutions, such as output voltage errors, current limiting, and thermal shutdown. Additionally, engineers can use oscilloscopes and logic analyzers to debug and analyze the device's behavior.
  • Yes, the NTS0102TL-Q100H is compatible with lead-free soldering processes, including reflow soldering and wave soldering. However, it's essential to follow the recommended soldering profiles and temperatures to ensure reliable connections and prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTS0102TL-Q100H Overview

Use the download button to access the NTS0102TL-Q100H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTS01, or try a keyword search, such as Level Translators

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
