NTS0104GU12 - NXP

Description: Voltage Level Translator Bidirectional 1 Circuit 4 Channel 50Mbps 12-XQFN (2x1.7)

Download NTS0104GU12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

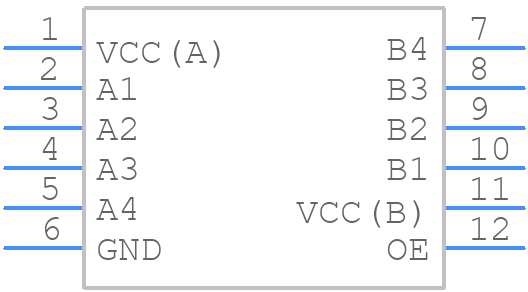

NTS0104GU12 - NXP - PCB symbol
click to zoom
PCB Footprints
NTS0104GU12 - NXP PCB footprint - Other - Other - XQFN12 (SOT1174-1)
click to zoom
3D Models
NTS0104GU12 - NXP - 3D model - Other - XQFN12 (SOT1174-1)
click to zoom

NTS0104GU12 Details

  • Manufacturer Part Number:

    NTS0104GU12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    1.70 X 2 MM, 0.50 MM HEIGHT, PLASTIC, MO-288, SOT1174-1, QFN-12

  • Pin Count:

    12

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5.38

  • JESD-30 Code:

    R-PQCC-N12

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.7 mm

NTS0104GU12 Frequently Asked Questions (FAQs)

  • A good PCB layout for NTS0104GU12 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its recommended operating temperature range (−40°C to +125°C).
  • Exceeding the maximum ratings for NTS0104GU12 can lead to permanent damage, reduced lifespan, or even catastrophic failure. It's crucial to ensure that the device operates within its recommended voltage, current, and temperature ranges to maintain reliability and performance.
  • To troubleshoot issues with NTS0104GU12, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is properly decoupled. Use oscilloscopes or other diagnostic tools to analyze the output waveform and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, NTS0104GU12 can be used in switching regulator applications, but it's essential to ensure that the device is properly biased and that the switching frequency is within the recommended range (typically up to 100 kHz). Additionally, consider the device's power dissipation and thermal management requirements.
