NTS0308EPWJ - NXP

Description: Translation - Voltage Levels Dual supply translating transceiver; open drain; auto direction sensing

Download NTS0308EPWJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

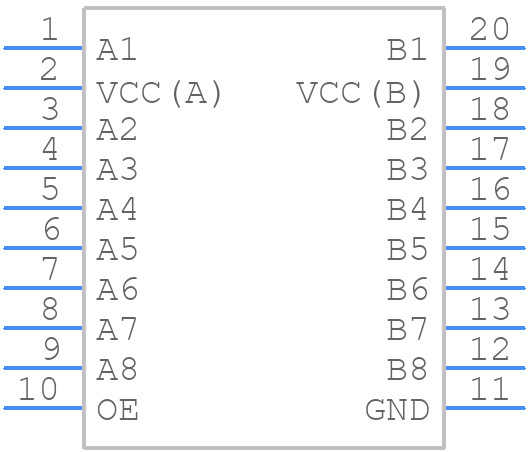

NTS0308EPWJ - NXP - PCB symbol
click to zoom
PCB Footprints
NTS0308EPWJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT360-1
click to zoom
3D Models
NTS0308EPWJ - NXP - 3D model - Small Outline Packages - SOT360-1
click to zoom

NTS0308EPWJ Details

  • Manufacturer Part Number:

    NTS0308EPWJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    TSSOP-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Delay-Max:

    20 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.059 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NTS0308EPWJ Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C.
  • The device has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
  • Yes, the NTS0308EPWJ is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended operating conditions, and consult with NXP Semiconductors for specific requirements and documentation.
  • Use a systematic approach to troubleshoot issues. Check the device's operating conditions, power supply, and PCB layout. Consult the datasheet and application notes for guidance. If issues persist, contact NXP Semiconductors' technical support or a local distributor for assistance.
