Technical Content
Part Image

NTT2012N065M3S - onsemi

Description: N-Channel 650 V 112A (Tc) 429W (Tc) Surface Mount T2PAK -55°C ~ 175°C 135 nC @ 18 V

Download NTT2012N065M3S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

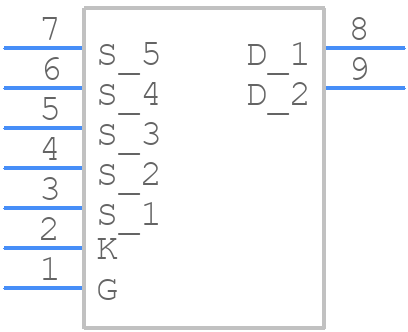

Symbol
NTT2012N065M3S - onsemi - PCB symbol
click to zoom
PCB Footprints
NTT2012N065M3S - onsemi PCB footprint - Other - Other - T2PAK-7 11.80x14.00x3.50, 1.27P CASE 763AC ISSUE A_2026-2.2
click to zoom
3D Models
NTT2012N065M3S - onsemi - 3D model - Other - T2PAK-7 11.80x14.00x3.50, 1.27P CASE 763AC ISSUE A_2026-2.2
click to zoom

NTT2012N065M3S Details

  • Manufacturer Part Number:

    NTT2012N065M3S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTT2012N065M3S Overview

Use the download button to access the NTT2012N065M3S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTT20, or try a keyword search, such as Power Field-Effect Transistors
