Part Image

NTV0505MC - Murata Electronics

Description: Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input

Download NTV0505MC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

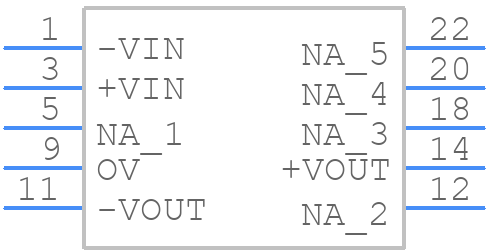

Symbol
NTV0505MC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NTV0505MC - Murata Electronics PCB footprint - Other - Other - 22-SMD Module, 10 Leads
click to zoom
3D Models
NTV0505MC - Murata Electronics - 3D model - Other - 22-SMD Module, 10 Leads
click to zoom

NTV0505MC Details

  • Manufacturer Part Number:

    NTV0505MC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO HAS -5V OUTPUT

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    71%

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-G10

  • JESD-609 Code:

    e4

  • Line Regulation-Max:

    1.2%

  • Load Regulation-Max:

    10%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

NTV0505MC Frequently Asked Questions (FAQs)

  • Murata recommends a 4-layer PCB with a solid ground plane and a separate power plane for the DC-DC converter. The input and output capacitors should be placed close to the IC, and the feedback resistors should be placed close to the output capacitor.
  • To ensure stability, it's recommended to use a minimum input capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the output voltage can be adjusted using the feedback resistors, and the output capacitor should be selected based on the output voltage and current requirements.
  • The maximum ambient temperature for reliable operation of the NTV0505MC is 85°C. However, the device can operate up to 105°C with derating. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • Yes, the NTV0505MC is suitable for high-reliability applications. Murata Manufacturing Co Ltd has a rigorous testing and qualification process to ensure the device meets the requirements of high-reliability industries. However, it's recommended to consult with Murata's application engineers to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the NTV0505MC, first check the PCB layout and component selection to ensure they meet the recommended guidelines. Then, use a oscilloscope to measure the input and output voltages, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes, or contact Murata's technical support team for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTV0505MC Overview

Use the download button to access the NTV0505MC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTV05, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
