NTV0512MC - Murata Electronics

Description: Murata Power Solutions 1W Isolated DC-DC Converter, Vin 4.5 → 5.5 V dc, Vout ±12V dc, I/O isolation 3kV dc

Download NTV0512MC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

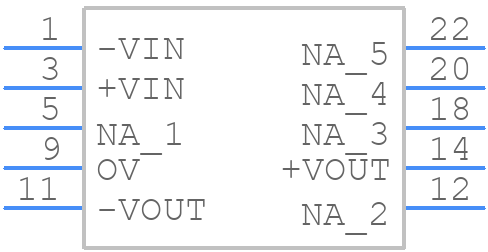

Symbol
NTV0512MC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
NTV0512MC - Murata Electronics PCB footprint - Other - Other - NTV0512MC-2
click to zoom
3D Models
NTV0512MC - Murata Electronics - 3D model - Other - NTV0512MC-2
click to zoom

NTV0512MC Details

  • Manufacturer Part Number:

    NTV0512MC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    ADDITIONAL -12V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-G10

  • JESD-609 Code:

    e4

  • Load Regulation-Max:

    8.5%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.042 A

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP10/22,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

NTV0512MC Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical PCB layout with a solid ground plane, and to keep the input and output traces as short as possible. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
  • To ensure reliability in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate airflow, using a heat sink if necessary, and ensuring the converter is operated within its specified temperature range.
  • The maximum capacitance for the output filter capacitor is not explicitly stated in the datasheet. However, as a general rule, it's recommended to keep the output capacitance below 10uF to avoid stability issues. It's also important to ensure the capacitor's ESR is within the recommended range.
  • Yes, the NTV0512MC can be used in a redundant or parallel configuration to achieve higher power output or to improve system reliability. However, it's essential to follow proper design guidelines and ensure the converters are synchronized and properly configured to avoid oscillations or other stability issues.
  • Murata recommends using a low-ESR ceramic capacitor with a value between 10uF to 22uF for the input filter capacitor. The capacitor should be rated for the input voltage and have a low ESL to minimize noise and ensure stable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NTV0512MC Overview

Use the download button to access the NTV0512MC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NTV05, or try a keyword search, such as Other Signal Circuits

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
