The maximum operating temperature range for the NUC029FAE is -40°C to 85°C.
The clock source for the NUC029FAE can be configured using the Clock Control Register (CLK_CFG). The clock source can be set to either the internal oscillator, external crystal oscillator, or external clock source.
The VBAT pin on the NUC029FAE is used to connect a battery or a supercapacitor to store data in the Real-Time Clock (RTC) and the backup registers when the power is off.
The ADC on the NUC029FAE can be used by configuring the ADC control register (ADC_CFG) and the ADC channel selection register (ADC_CH_SEL). The ADC conversion result can be read from the ADC result register (ADC_RSLT).
The maximum current that can be sourced by the GPIO pins on the NUC029FAE is 20mA.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NUC029FAE Overview

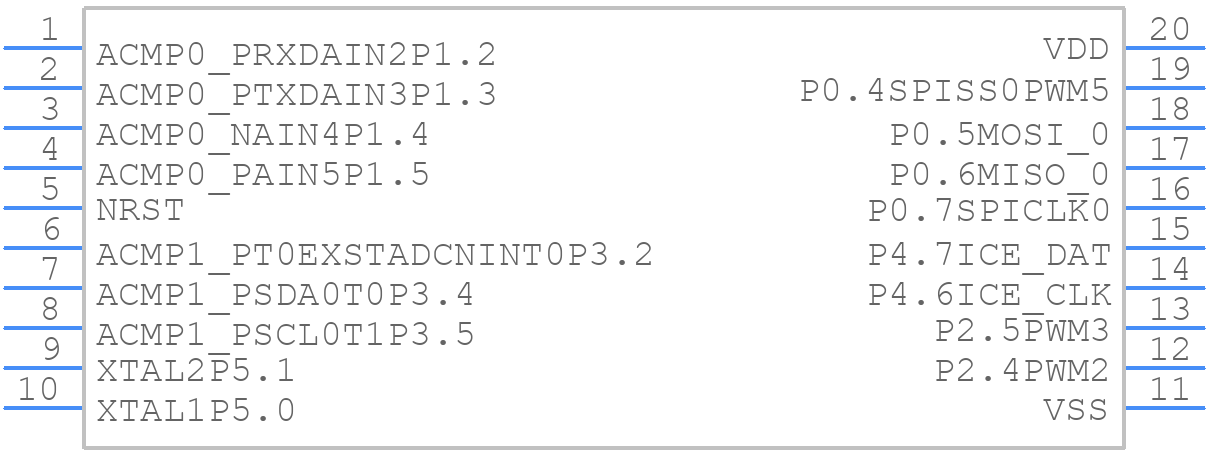

Use the download button to access the NUC029FAE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NUC02,
or try a keyword search, such as Microcontrollers
