The recommended operating temperature range for NUC1311LC2AE is -40°C to 85°C.
The clock source for NUC1311LC2AE can be configured through the Clock Control Register (CLK_CFG). The clock source can be set to either the internal oscillator, external crystal oscillator, or external clock input.
The maximum frequency of the CPU clock for NUC1311LC2AE is 72 MHz.
The brown-out detector (BOD) can be enabled by setting the BODEN bit in the Power Management Control Register (PMC_CTRL). The BOD voltage threshold can be set through the BOD_VTH register.
The built-in voltage regulator in NUC1311LC2AE is used to regulate the internal power supply voltage (VDD) to 1.2V or 1.8V, depending on the configuration. This allows the device to operate from a single external power supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NUC1311LC2AE Overview

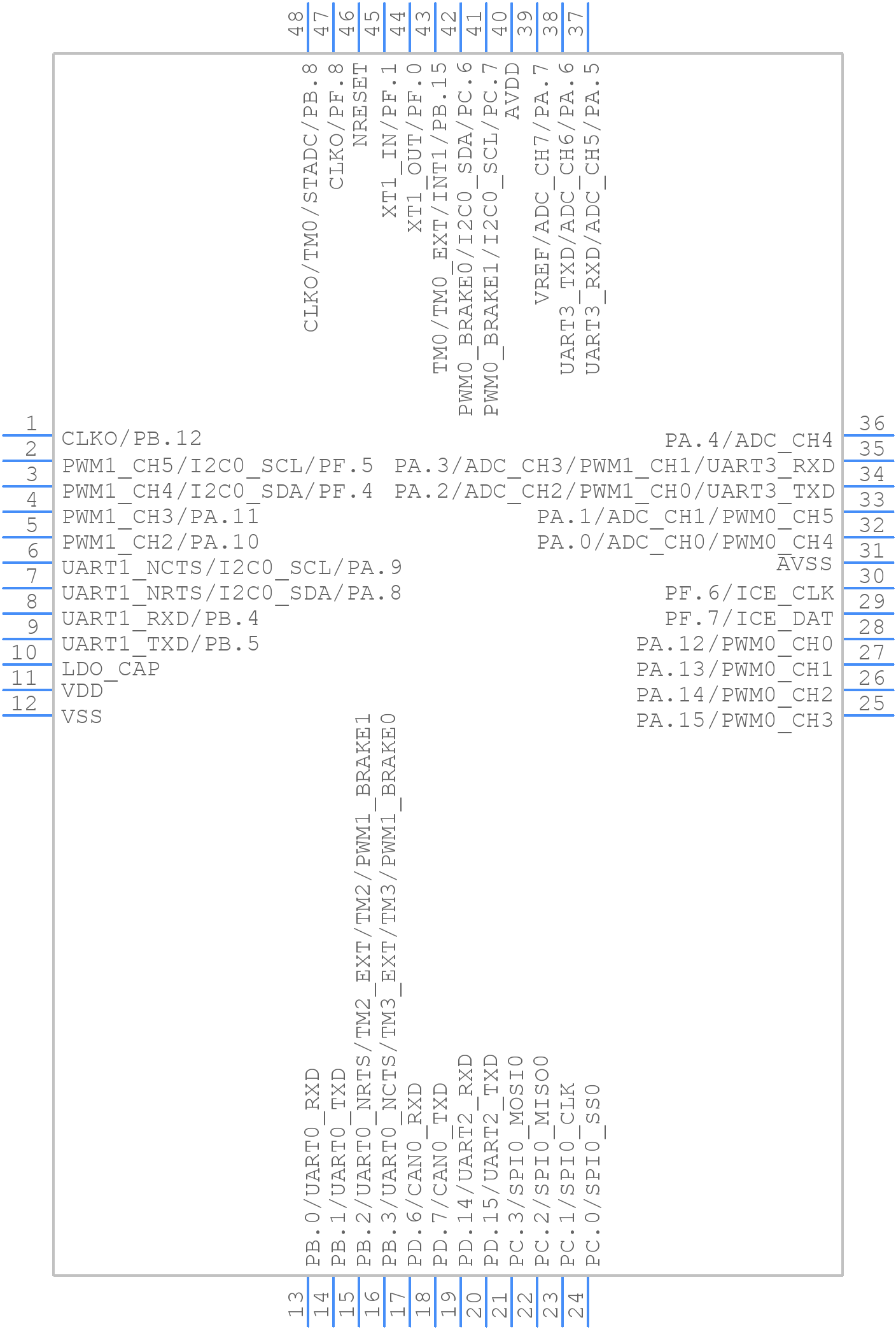

Use the download button to access the NUC1311LC2AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NUC13,
or try a keyword search, such as Microcontrollers
