NUC2401MNTAG - onsemi

Description: 2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 100mA DCR 5Ohm

Download NUC2401MNTAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

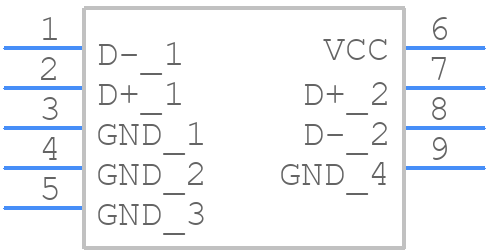

NUC2401MNTAG - onsemi - PCB symbol
click to zoom
PCB Footprints
NUC2401MNTAG - onsemi PCB footprint - Other - Other - DFN8, 2.2x2, 0.5P CASE 506BL−01 ISSUE O_2025-2
click to zoom
3D Models
NUC2401MNTAG - onsemi - 3D model - Other - DFN8, 2.2x2, 0.5P CASE 506BL−01 ISSUE O_2025-2
click to zoom

NUC2401MNTAG Details

  • Manufacturer Part Number:

    NUC2401MNTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN8, 2.2x2, 0.5P

  • Package Description:

    DFN, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    506BL

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Capacitance:

    1 µF

  • DC Resistance-Max:

    5 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    1 mm

  • Length:

    2.2 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    90 OHM Ω

  • Packing Method:

    TR

  • Rated Current:

    0.1 A

  • Screening Level:

    IEC 61000-4-2

  • Width:

    2 mm

NUC2401MNTAG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NUC2401MNTAG is 2.7V to 5.5V.
  • The clock source for the NUC2401MNTAG can be configured using the CLK_SEL pins. The internal RC oscillator can be used as the clock source, or an external clock source can be used by connecting it to the CLK_IN pin.
  • The maximum frequency of the NUC2401MNTAG is 32 MHz.
  • The ADC on the NUC2401MNTAG is a 12-bit successive approximation ADC. It can be used to convert analog signals to digital signals. The ADC can be triggered by software or by an external signal.
  • The BOD on the NUC2401MNTAG is used to detect when the voltage supply drops below a certain threshold. When the voltage supply drops below the threshold, the BOD will reset the device.
