NUC240LE3AE - Nuvoton

Description: ARM® Cortex®-M0 NuMicro™ NUC240 Microcontroller IC 32-Bit Single-Core 72MHz 128KB (128K x 8) FLASH 48-LQFP (7x7)

Download NUC240LE3AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

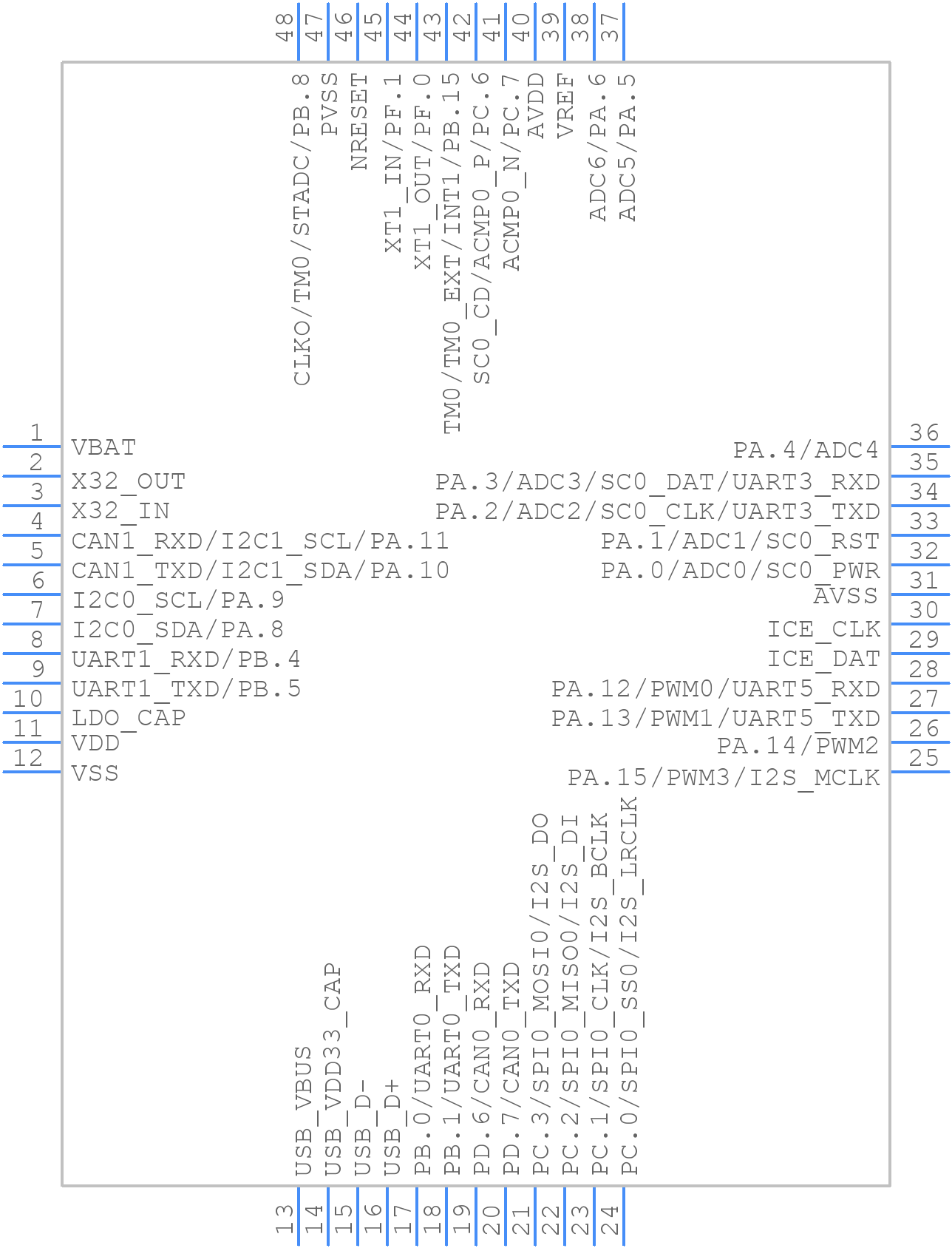

NUC240LE3AE - Nuvoton - PCB symbol
click to zoom
PCB Footprints
NUC240LE3AE - Nuvoton PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-pin LQFP
click to zoom
3D Models
NUC240LE3AE - Nuvoton - 3D model - Quad Flat Packages - 48-pin LQFP
click to zoom

NUC240LE3AE Details

  • Manufacturer Part Number:

    NUC240LE3AE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    7

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

NUC240LE3AE Frequently Asked Questions (FAQs)

  • The NUC240LE3AE can operate in a temperature range of -40°C to 85°C.
  • The clock source can be configured through the Clock Control Register (CLK_CFG). The NUC240LE3AE can use an external crystal oscillator, internal RC oscillator, or external clock source.
  • The maximum frequency of the NUC240LE3AE is 24 MHz.
  • The ADC on the NUC240LE3AE is a 12-bit successive approximation ADC. It can be configured through the ADC Control Register (ADC_CFG) and the ADC Data Register (ADC_DATA).
  • Yes, the NUC240LE3AE has a power-down mode (PD) and a sleep mode (SLEEP) to reduce power consumption. These modes can be configured through the Power Management Register (PWR_CFG).
